Diagrams

Explore our comprehensive collection of helpful diagrams including trailer brake systems, trailing arm angles, and DIY trailer building guides. Perfect for enthusiasts and professionals, our diagrams simplify complex concepts for efficient and safe trailer fabrication and maintenance. If you have any further questions don’t hesitate to reach out to our team of experts for assistance!

Shop Now
electric trailer brake labeled parts diagram

12″ Electric Trailer Brake Diagram

electric trailer brake dimensions

12″ Electric Trailer Brake Dimensions

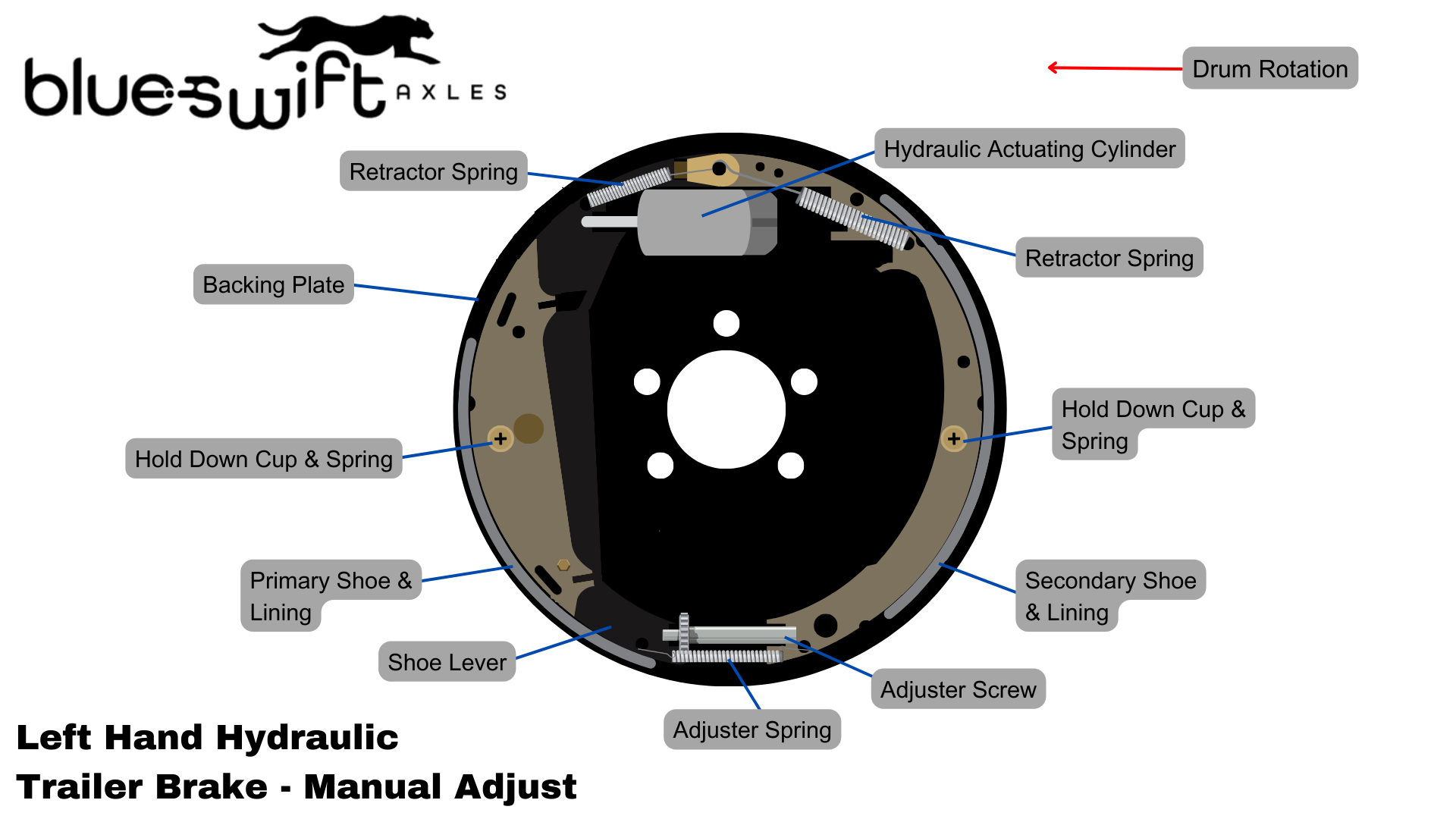

hydraulic trailer brake labeled diagram

12″ Hydraulic Trailer Brake Diagram

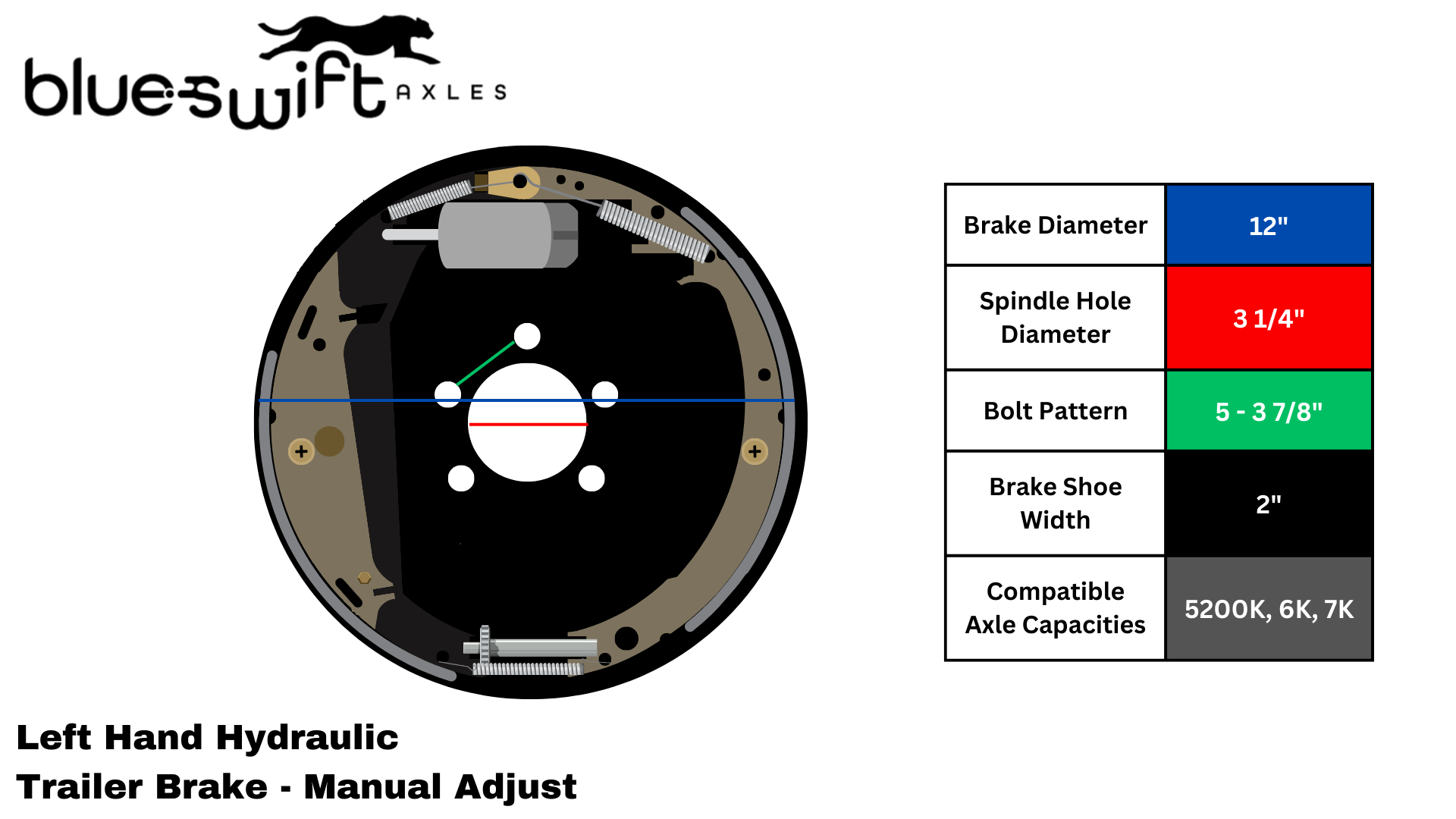

hydraulic trailer brake dimensions

12″ Hydraulic Trailer Brake Dimensions

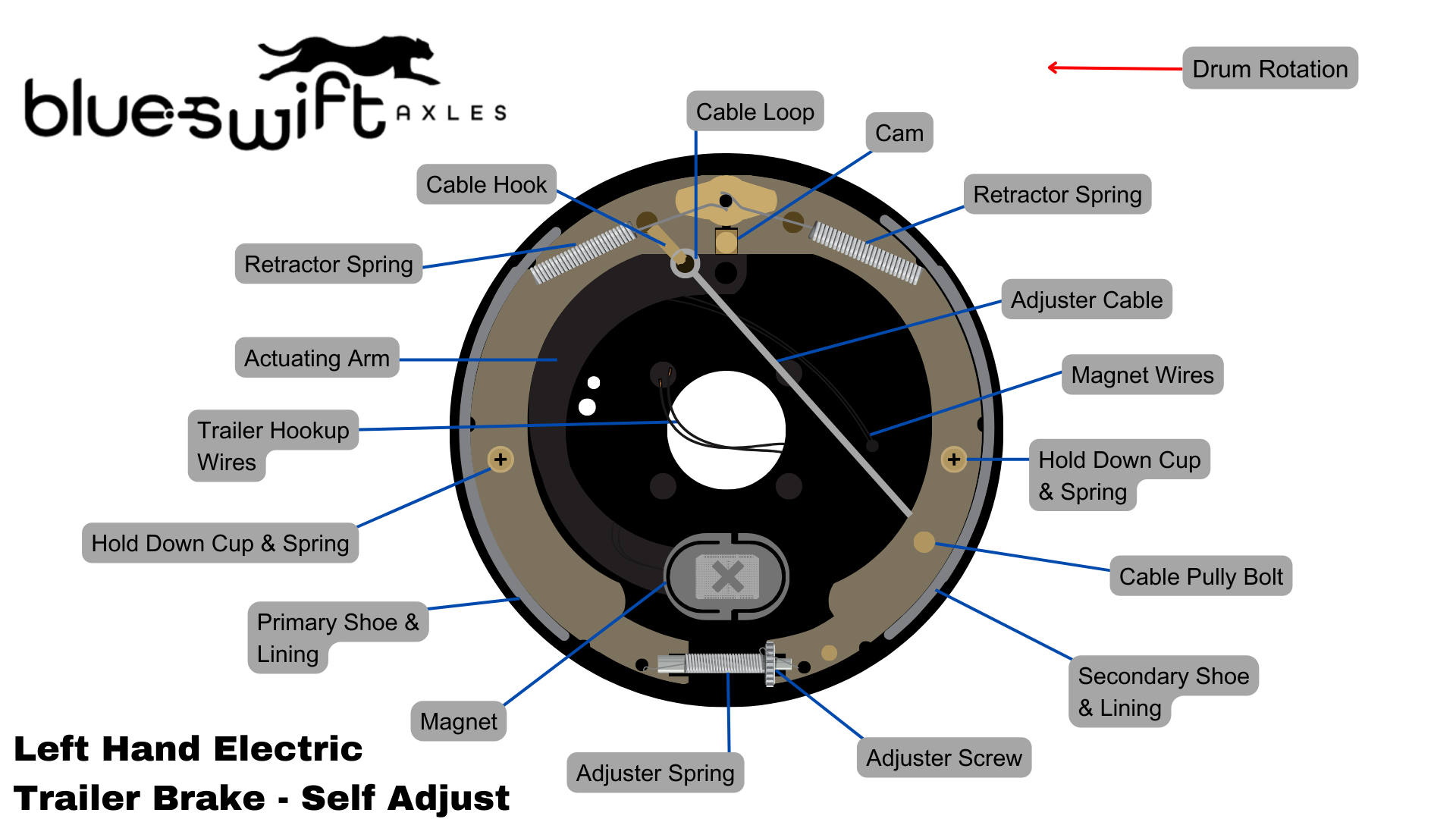

10 Inch electric trailer brake labeled diagram

10″ Electric Trailer Brake Diagram

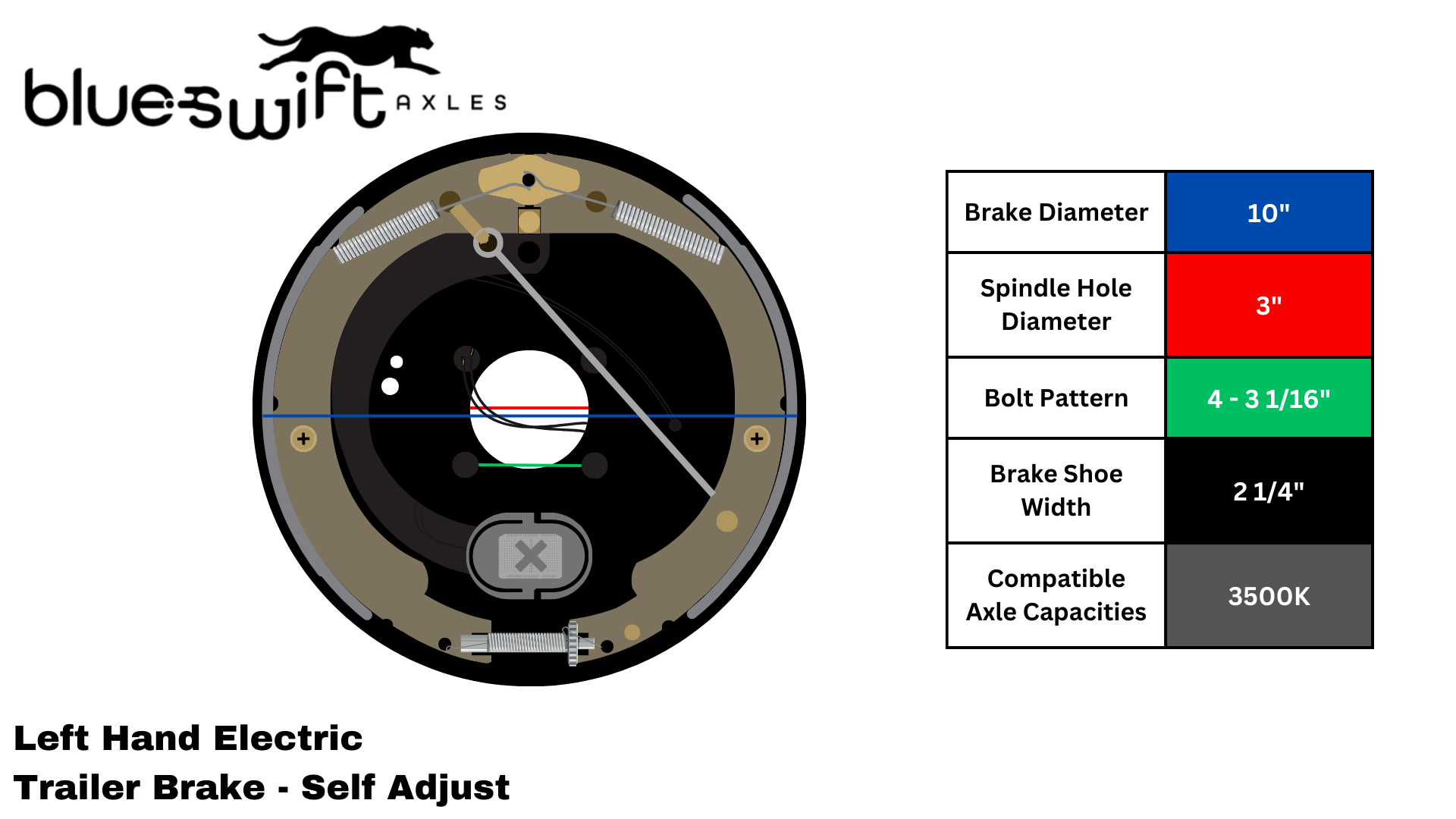

10 Inch electric trailer brake dimensions

10″ Electric Trailer Brake Dimensions

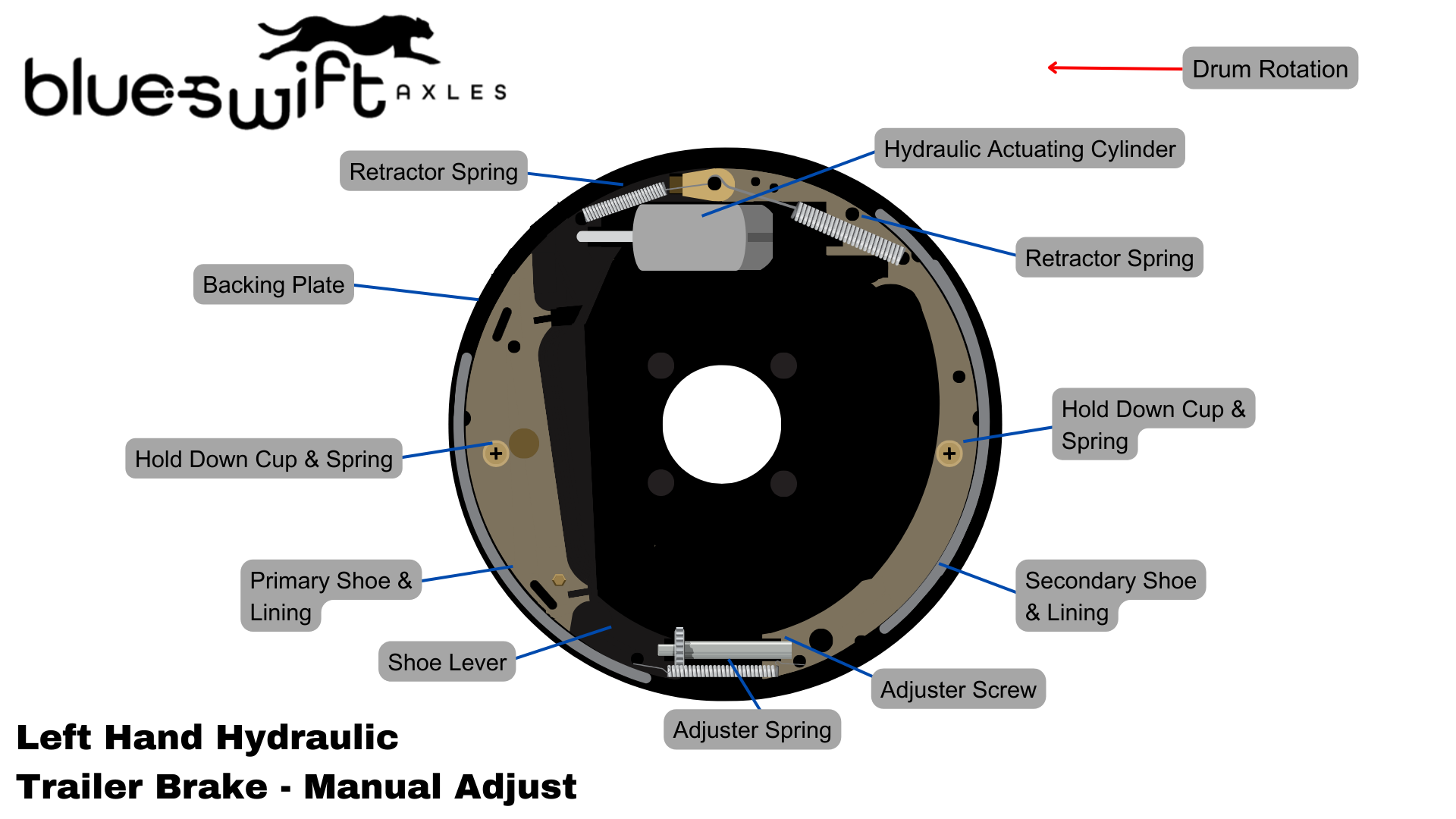

10 Inch hydraulic trailer brake labeled diagram

10″ Hydraulic Trailer Brake Diagram

10 inch hydraulic trailer brake dimensions

10″ Hydraulic Trailer Brake Dimensions

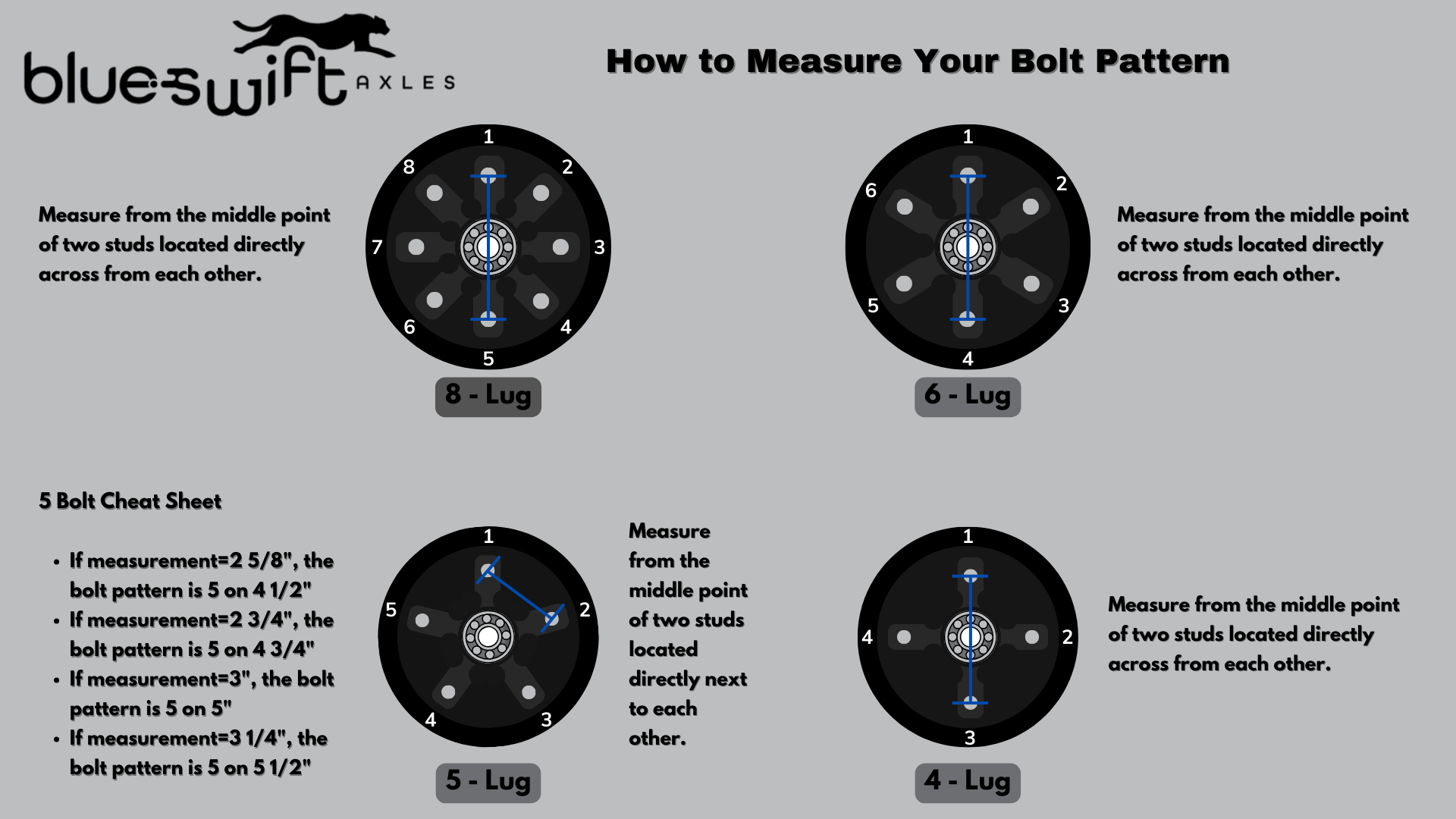

How to Find Your Bolt Pattern on a trailer axle hub

Trailer Hub Bolt Pattern Template

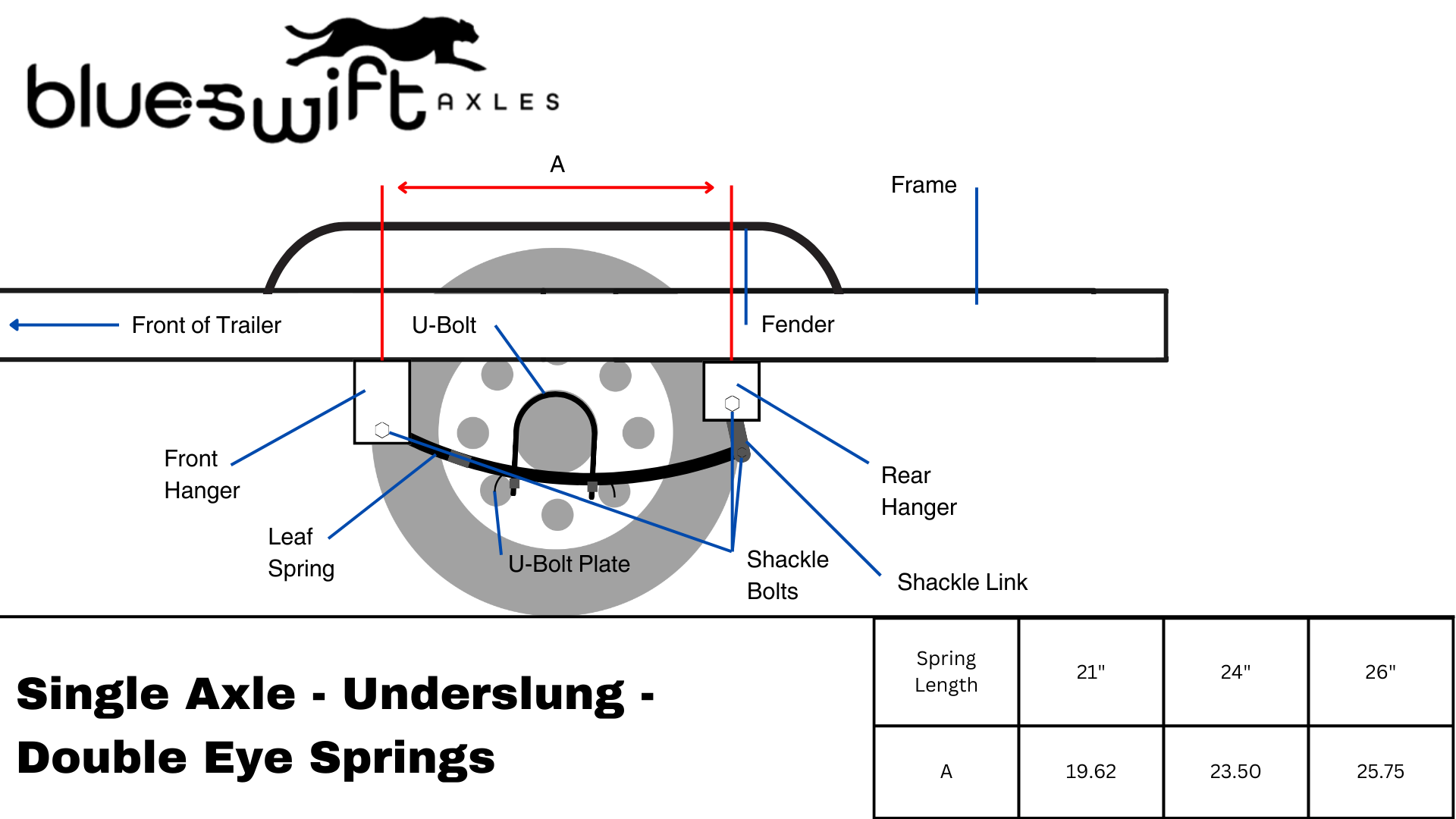

double eye underslung springs on a single axle diagram with measurements

Single Axle Underslung Leaf Spring Trailer Diagram

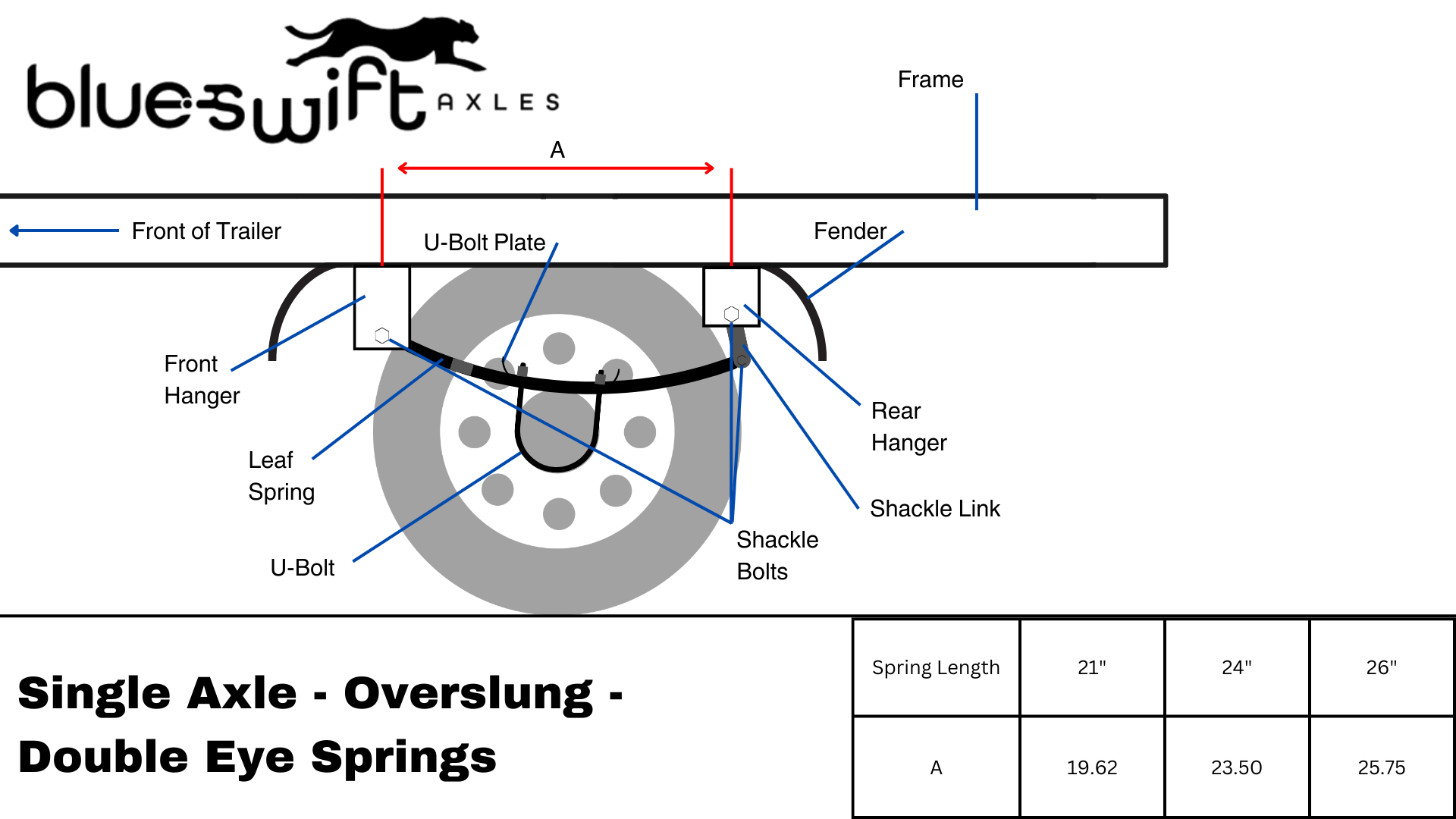

double eye overslung springs on a single axle diagram with measurements

Single Axle Overslung Leaf Spring Trailer Diagram

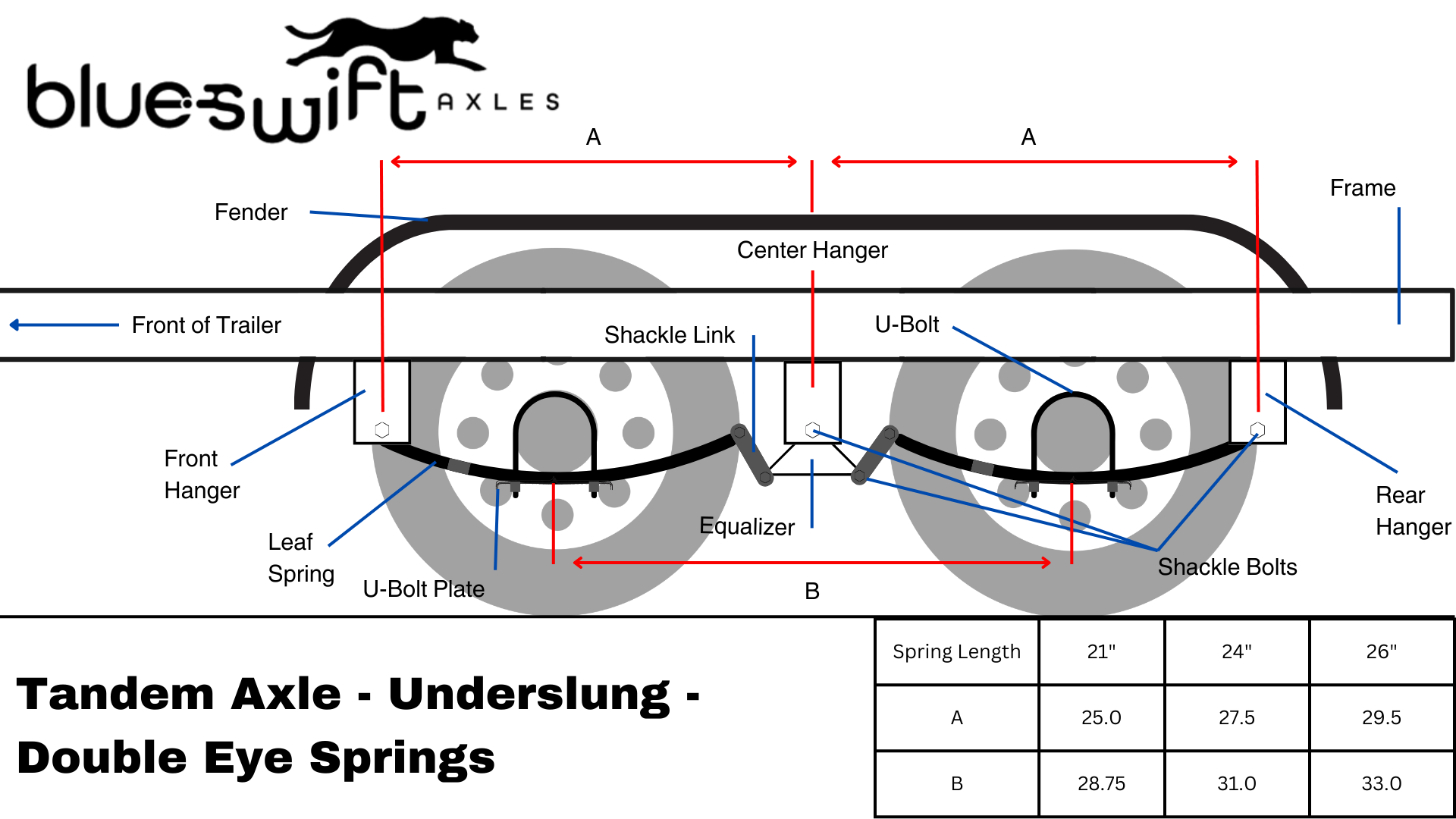

double eye underslung springs on a tandem axle diagram with measurements

Tandem Axle Underslung Leaf Spring Trailer Diagram

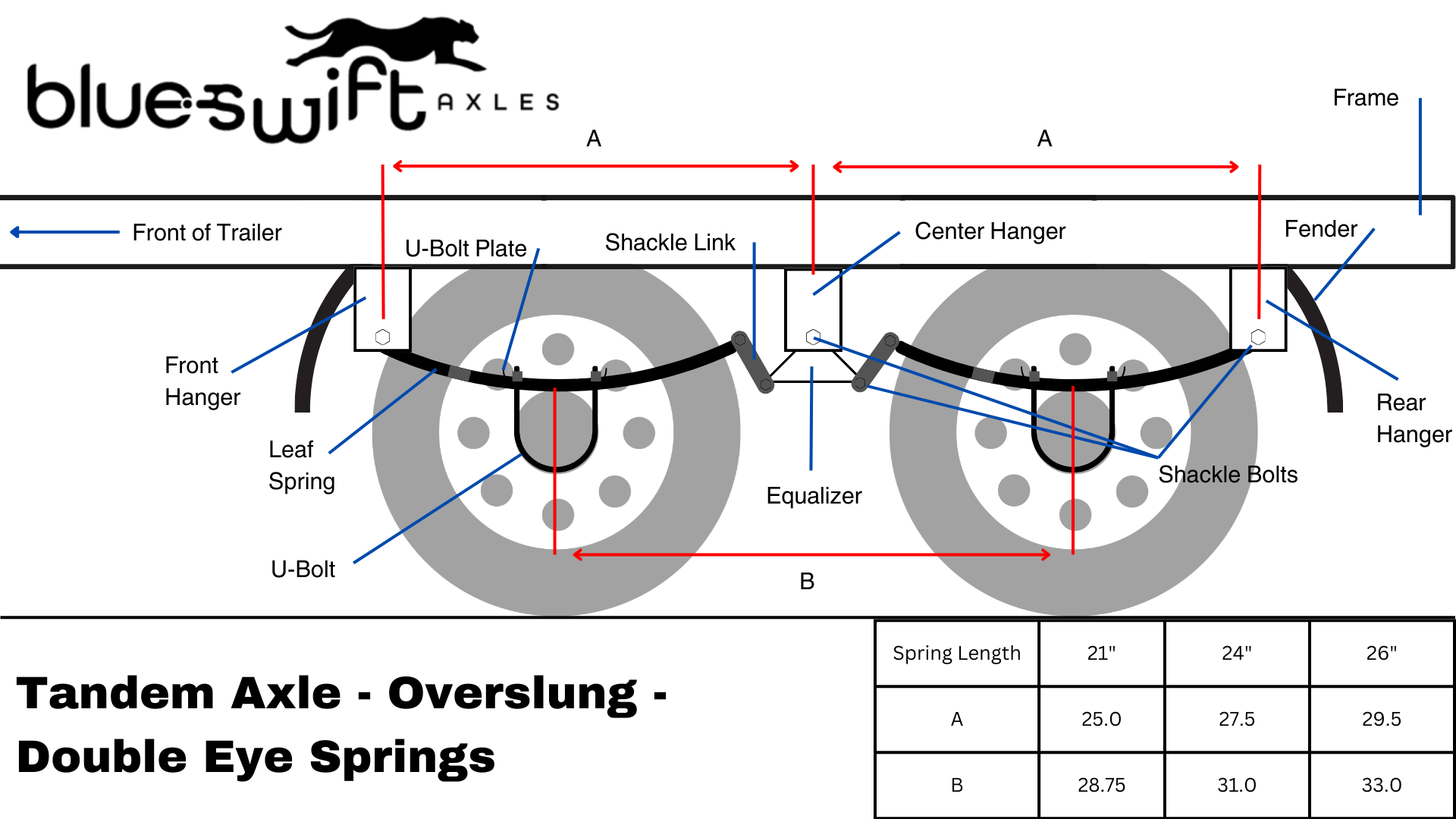

double eye overslung springs on a tandem axle diagram with measurements

Tandem Axle Overslung Leaf Spring Trailer Diagram

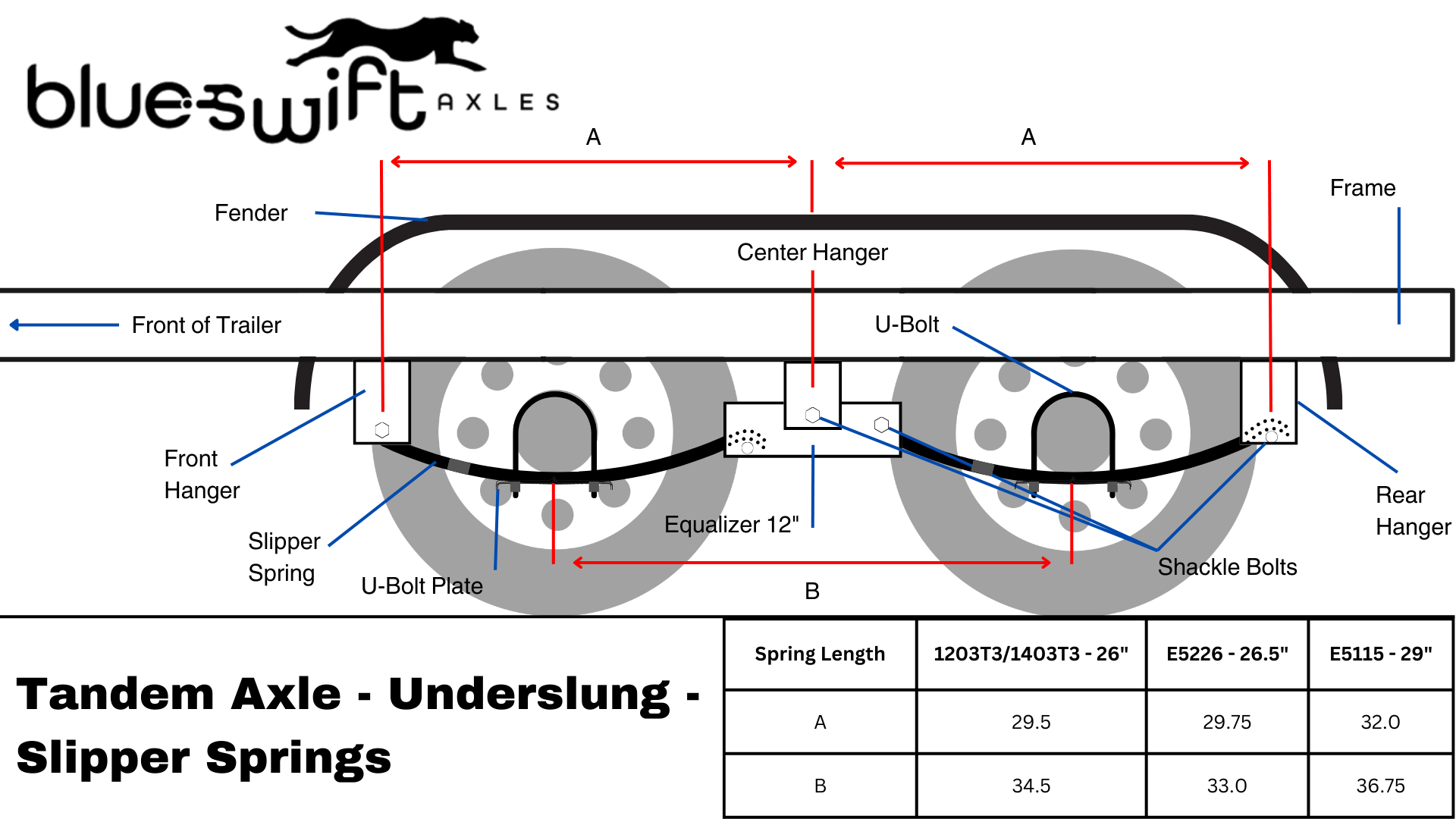

slipper underslung springs on a tandem axle diagram with measurements

Tandem Axle Underslung Slipper Spring Trailer Diagram

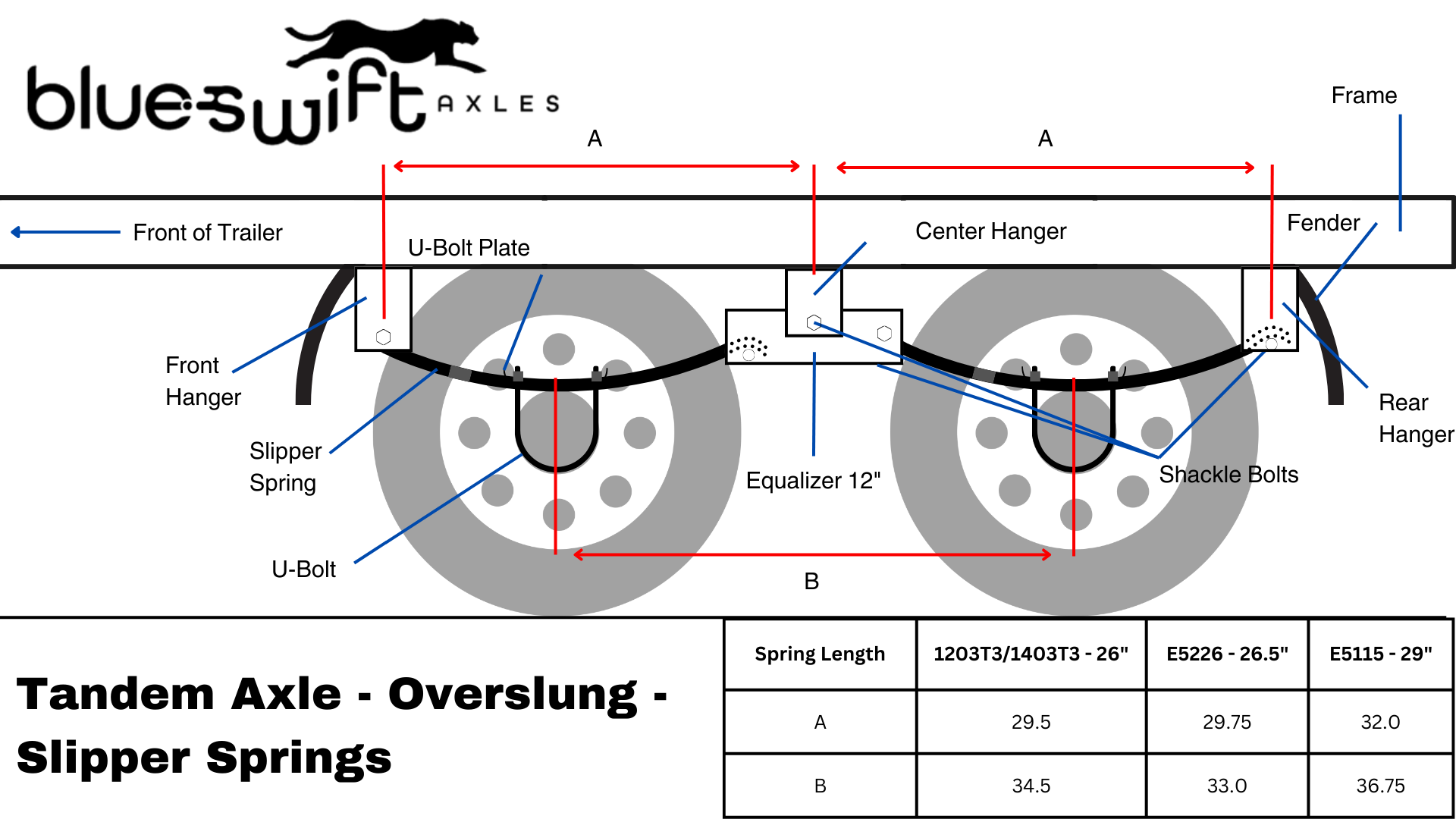

slipper overslung springs on a tandem axle diagram with measurements

Tandem Axle Overslung Slipper Spring Trailer Diagram

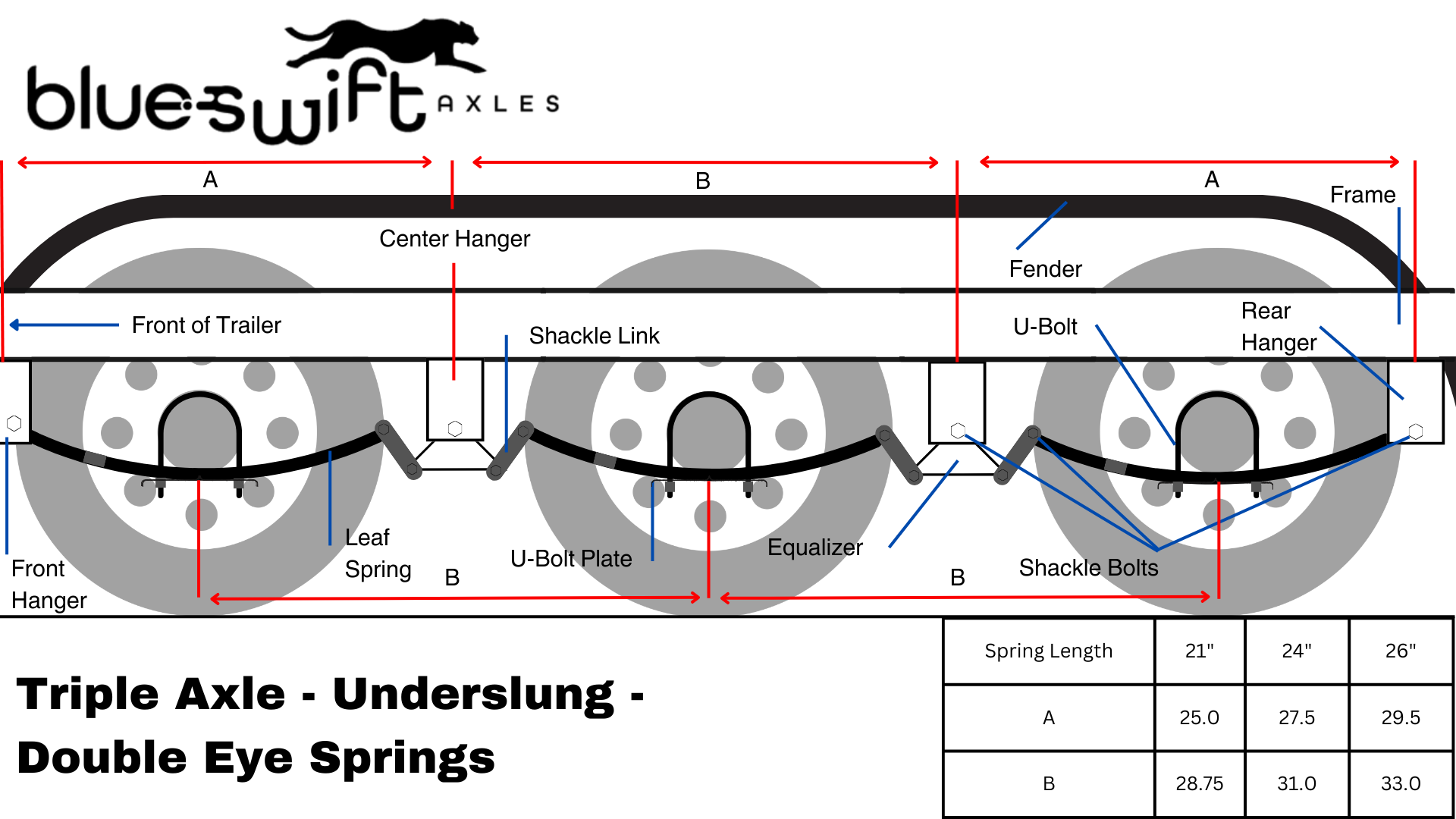

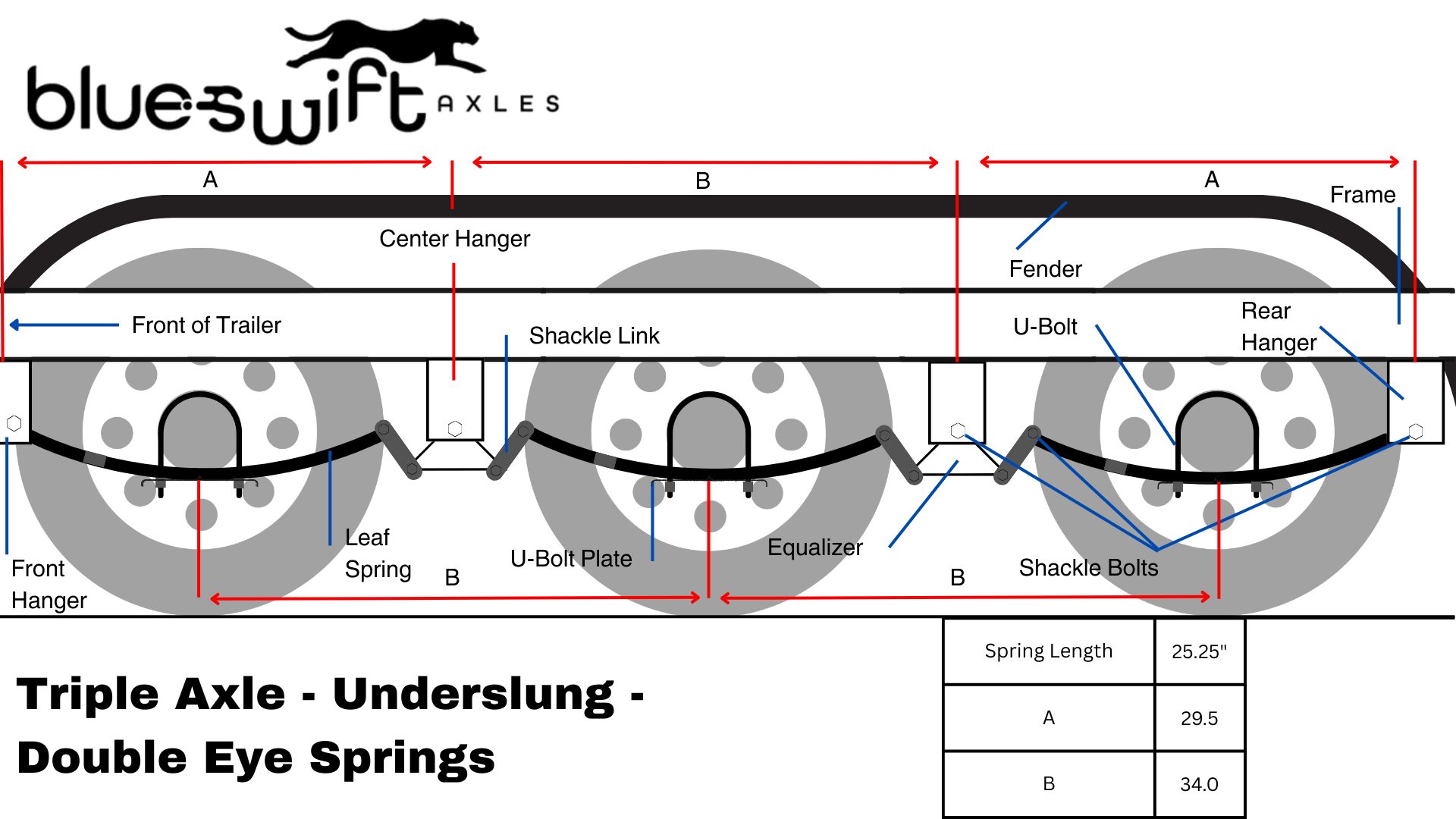

double eye underslung springs on a triple axle diagram with measurements

Triple Axle Underslung Leaf Spring Trailer Diagram

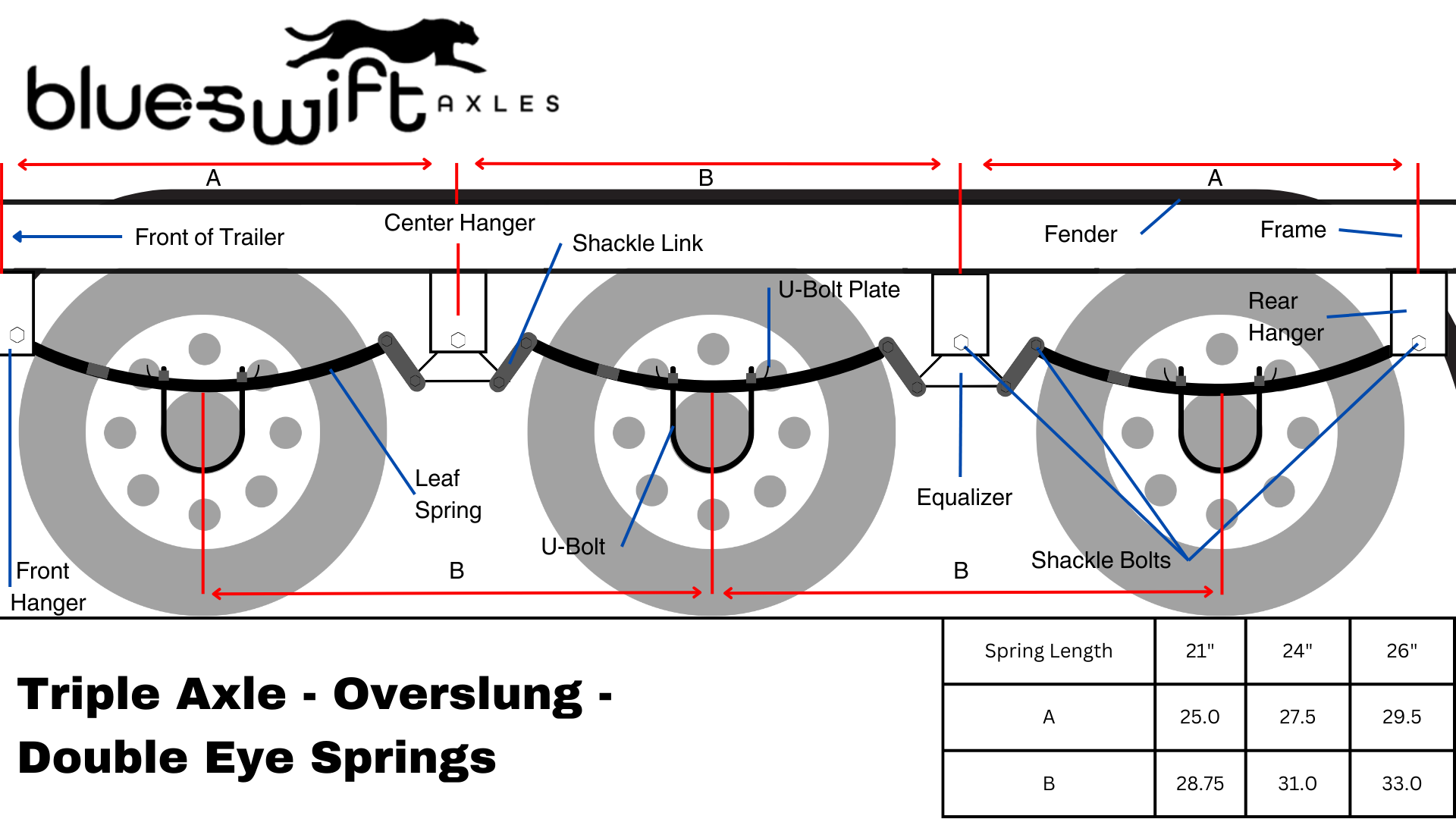

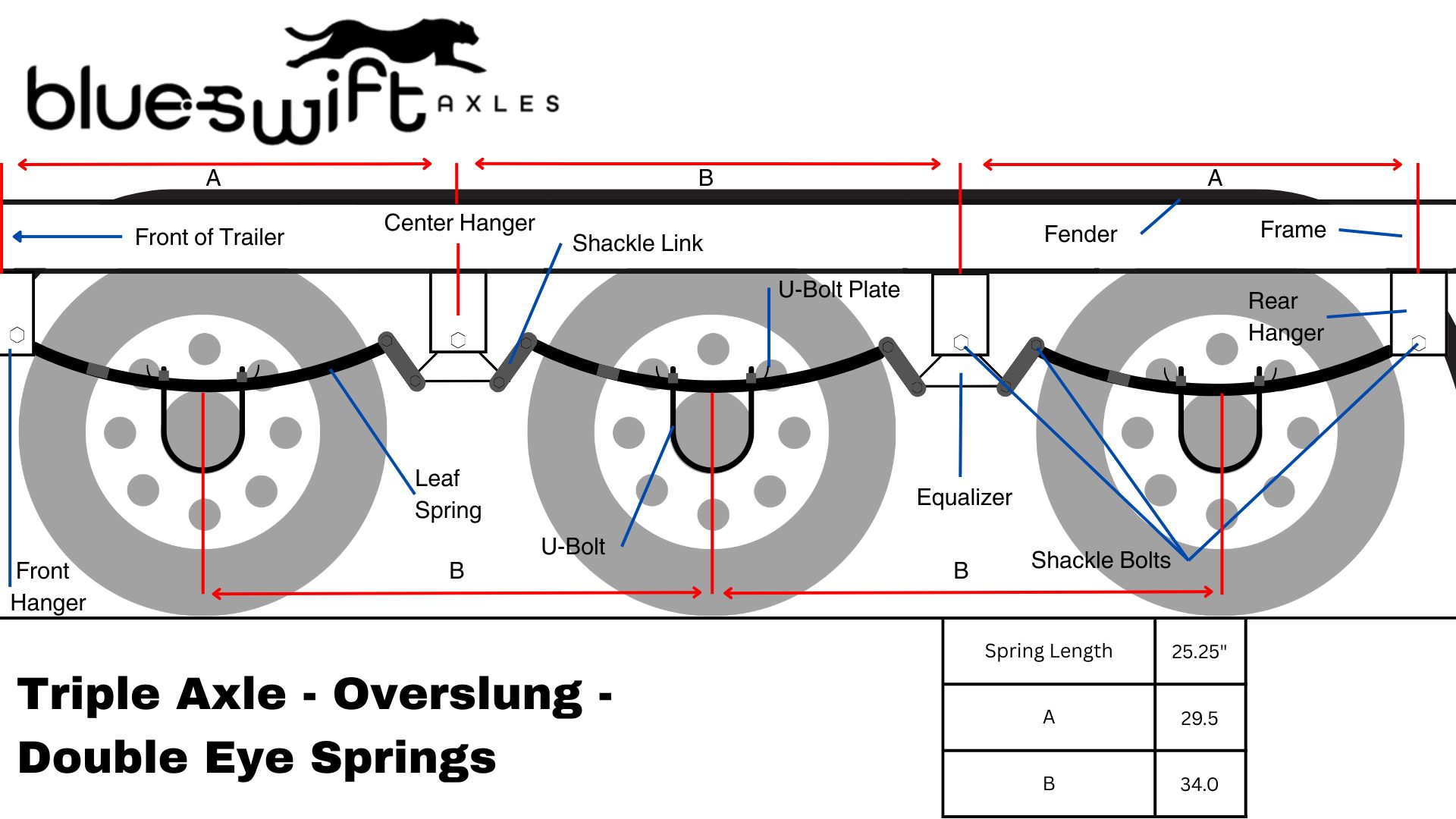

double eye overslung springs on a triple axle diagram with measurements

Triple Axle Overslung Leaf Spring Trailer Diagram

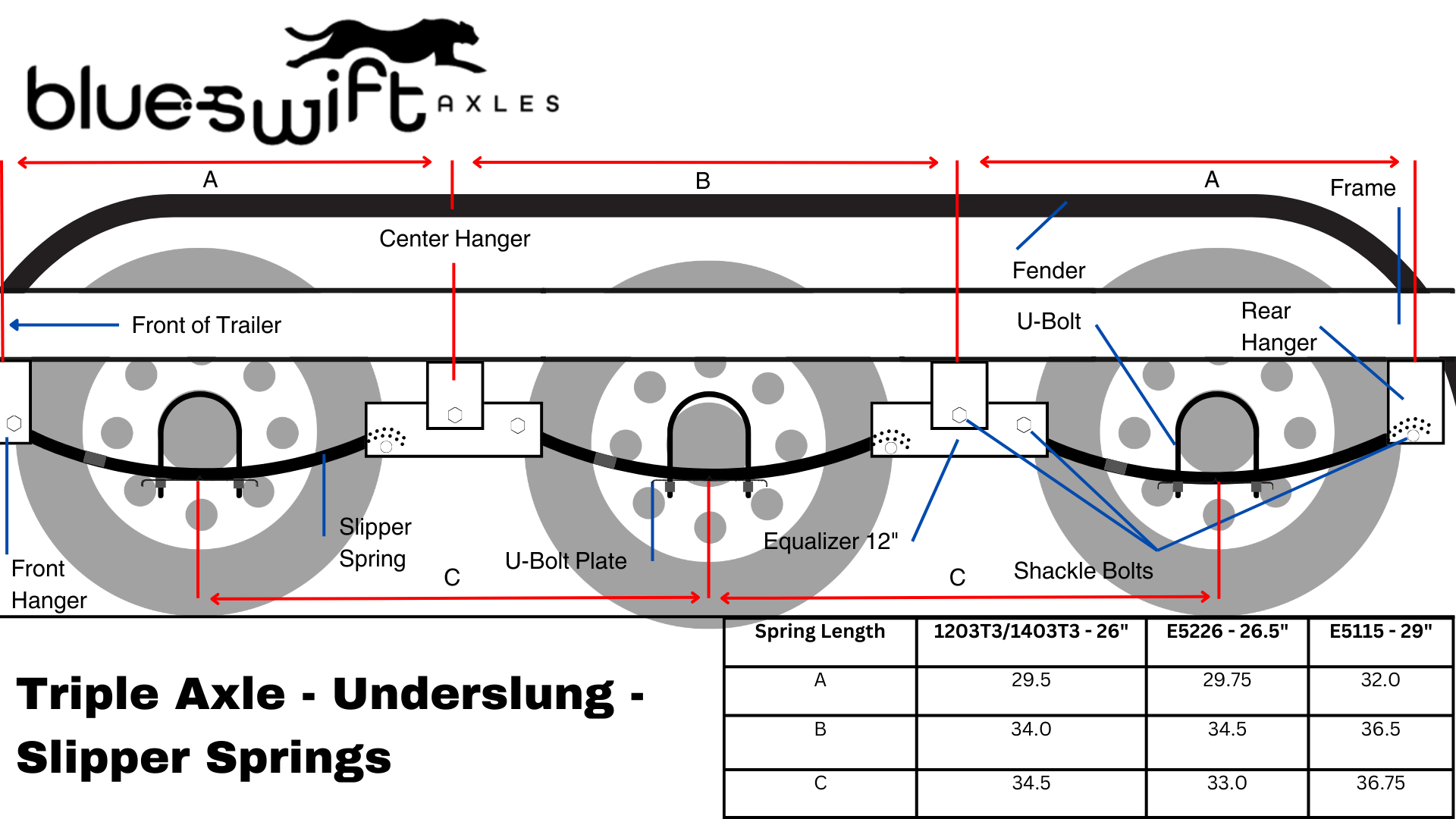

slipper underslung springs on a triple axle diagram with measurements

Triple Axle Underslung Slipper Spring Trailer Diagram

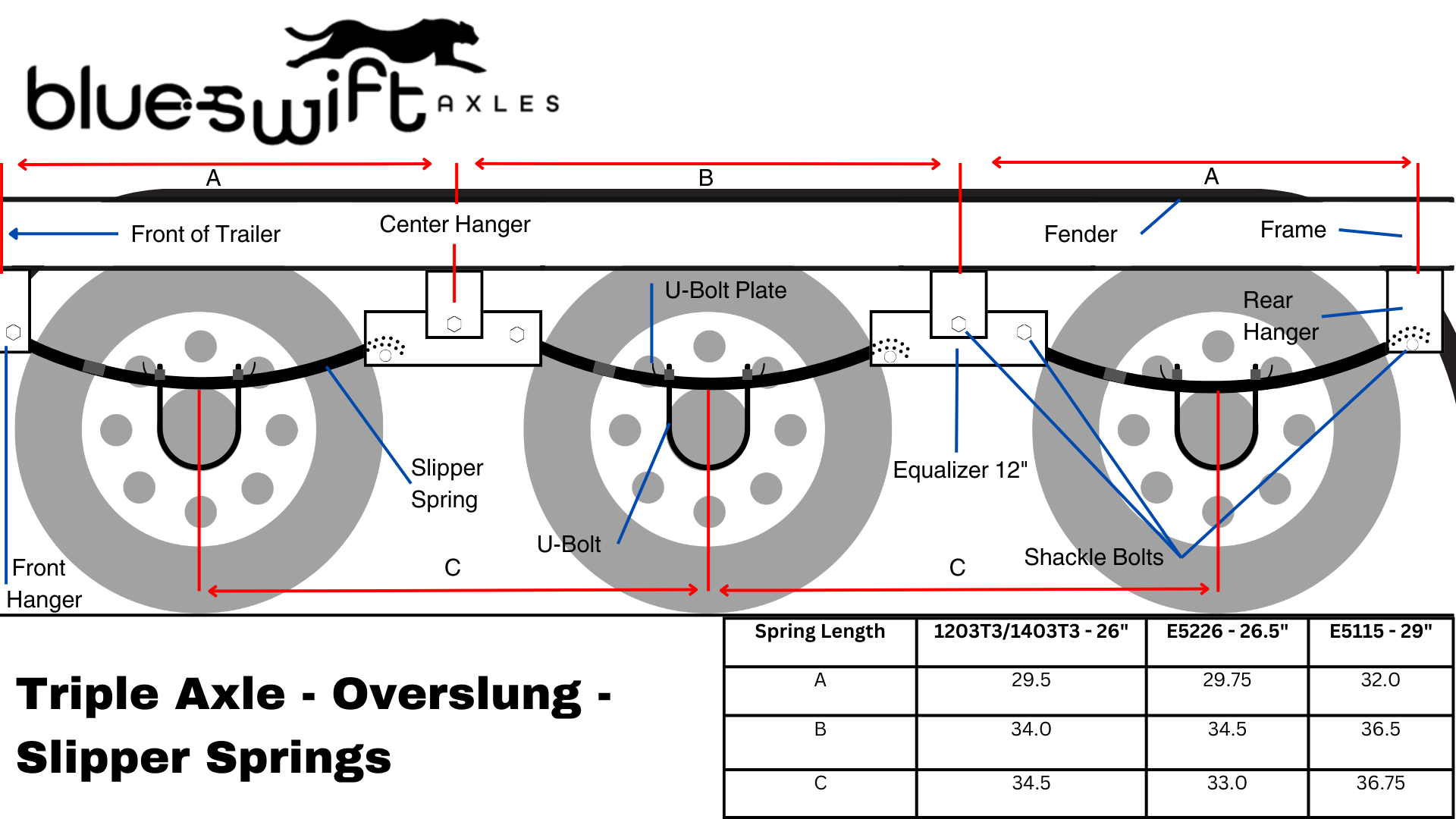

slipper overslung springs on a triple axle diagram with measurements

Triple Axle Overslung Slipper Spring Trailer Diagram

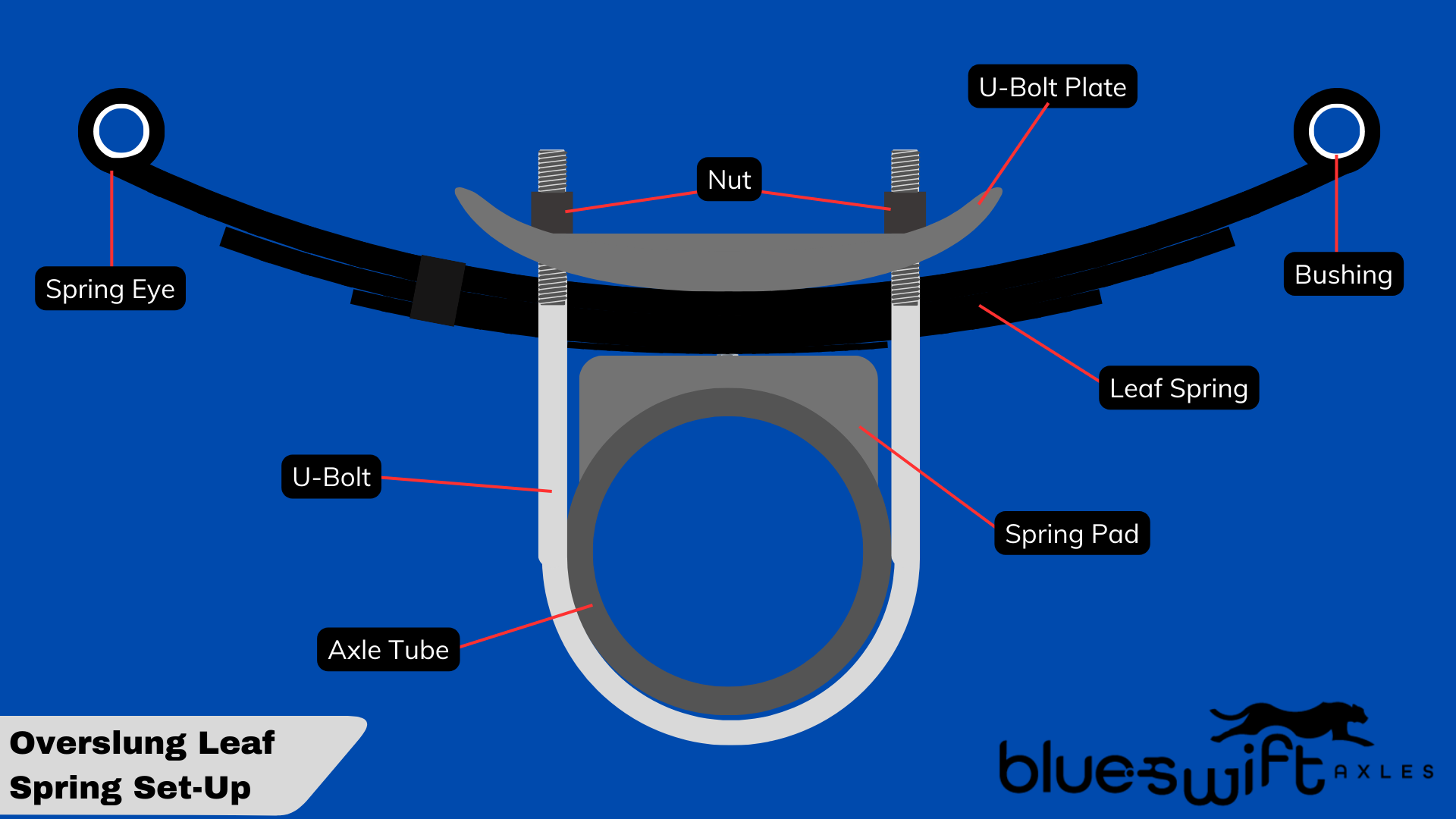

Trailer axle leaf spring labeled diagram

Overslung Leaf Spring/U-Bolt Diagram

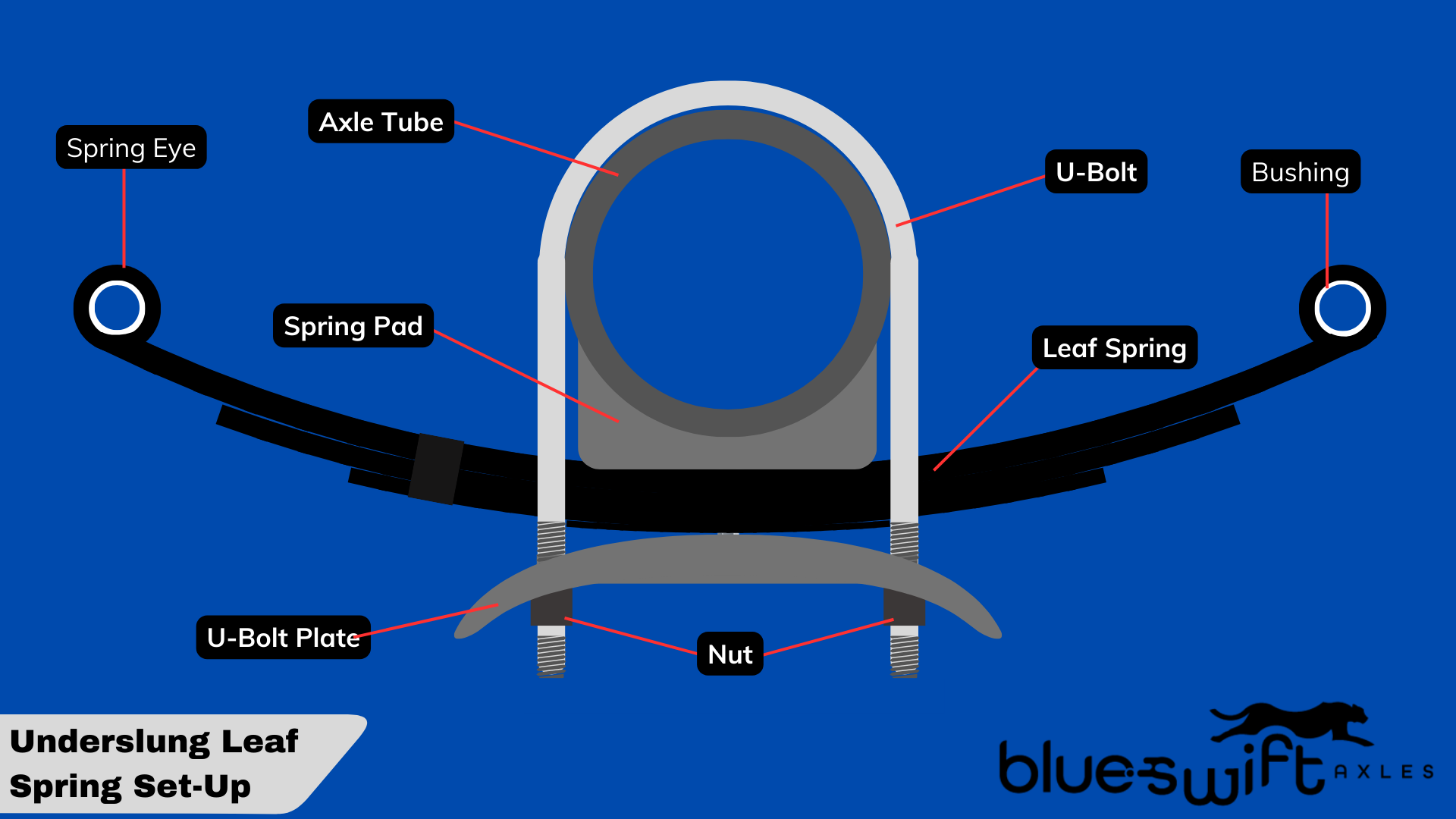

labeled trailer axle leaf spring diagram

Underslung Leaf Spring/U-Bolt Diagram

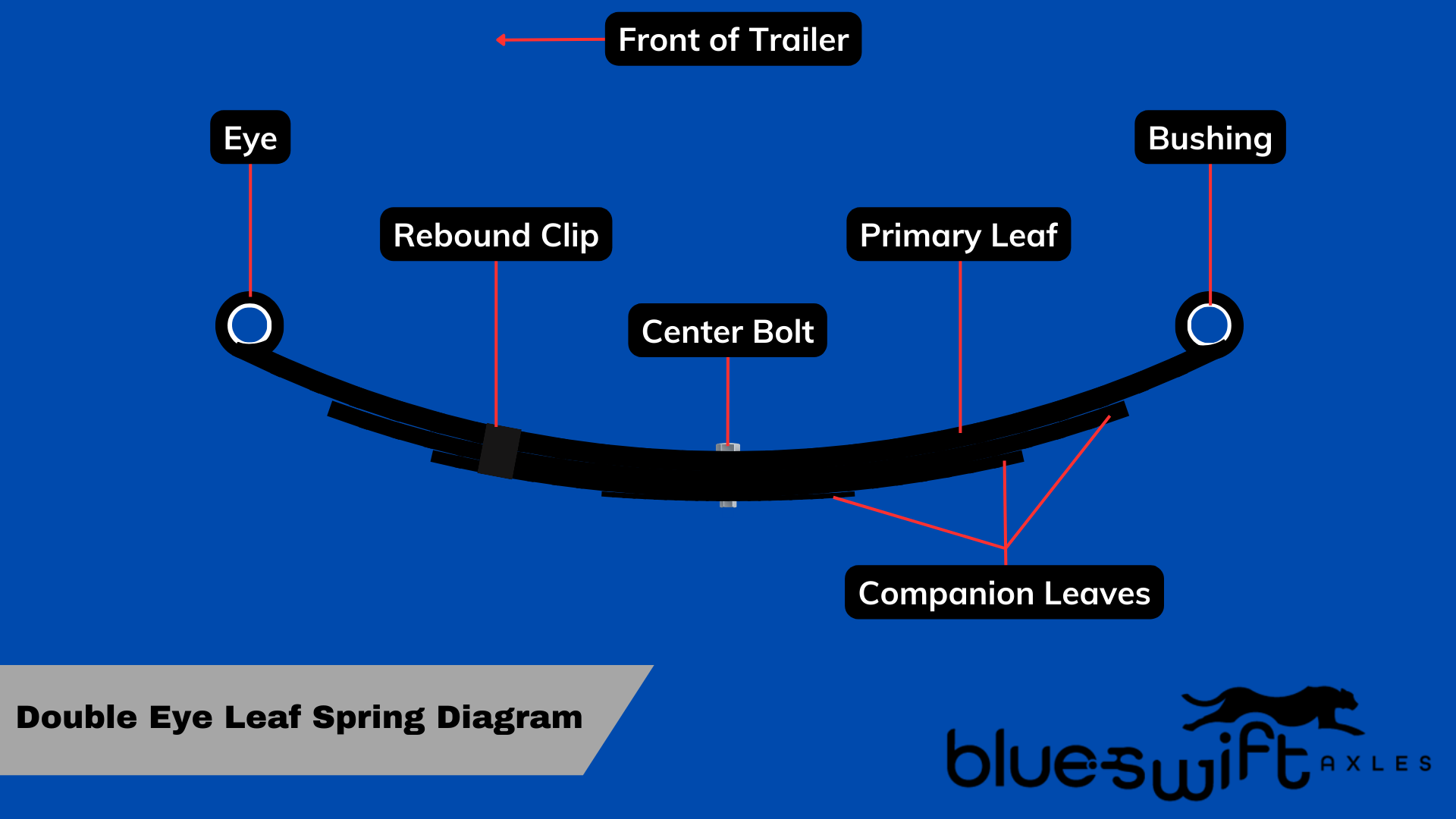

Trailer axle double eye leaf spring labeled diagram

Double Eye Leaf Spring Diagram

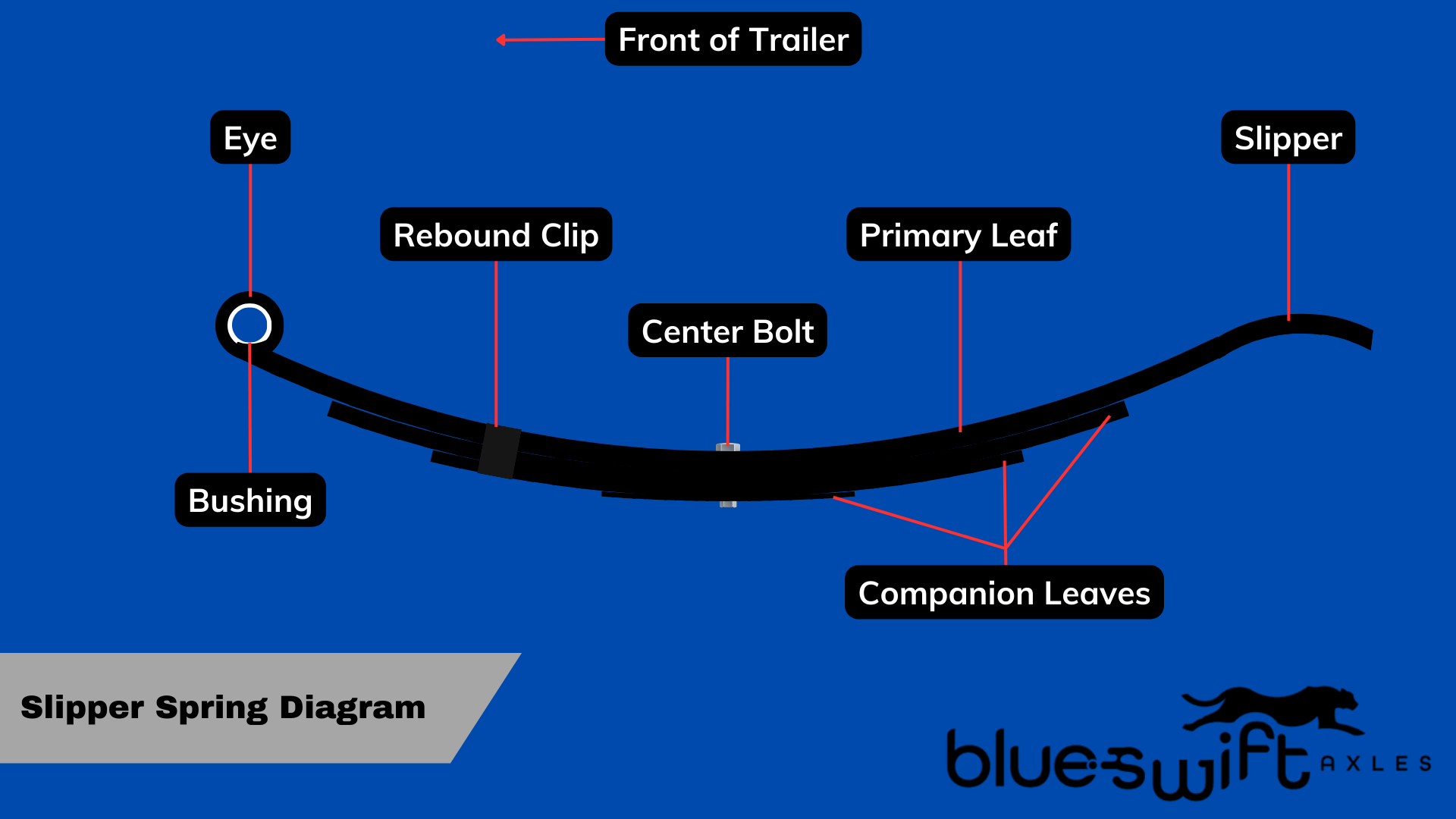

trailer axle slipper spring labeled diagram

Slipper Spring Diagram

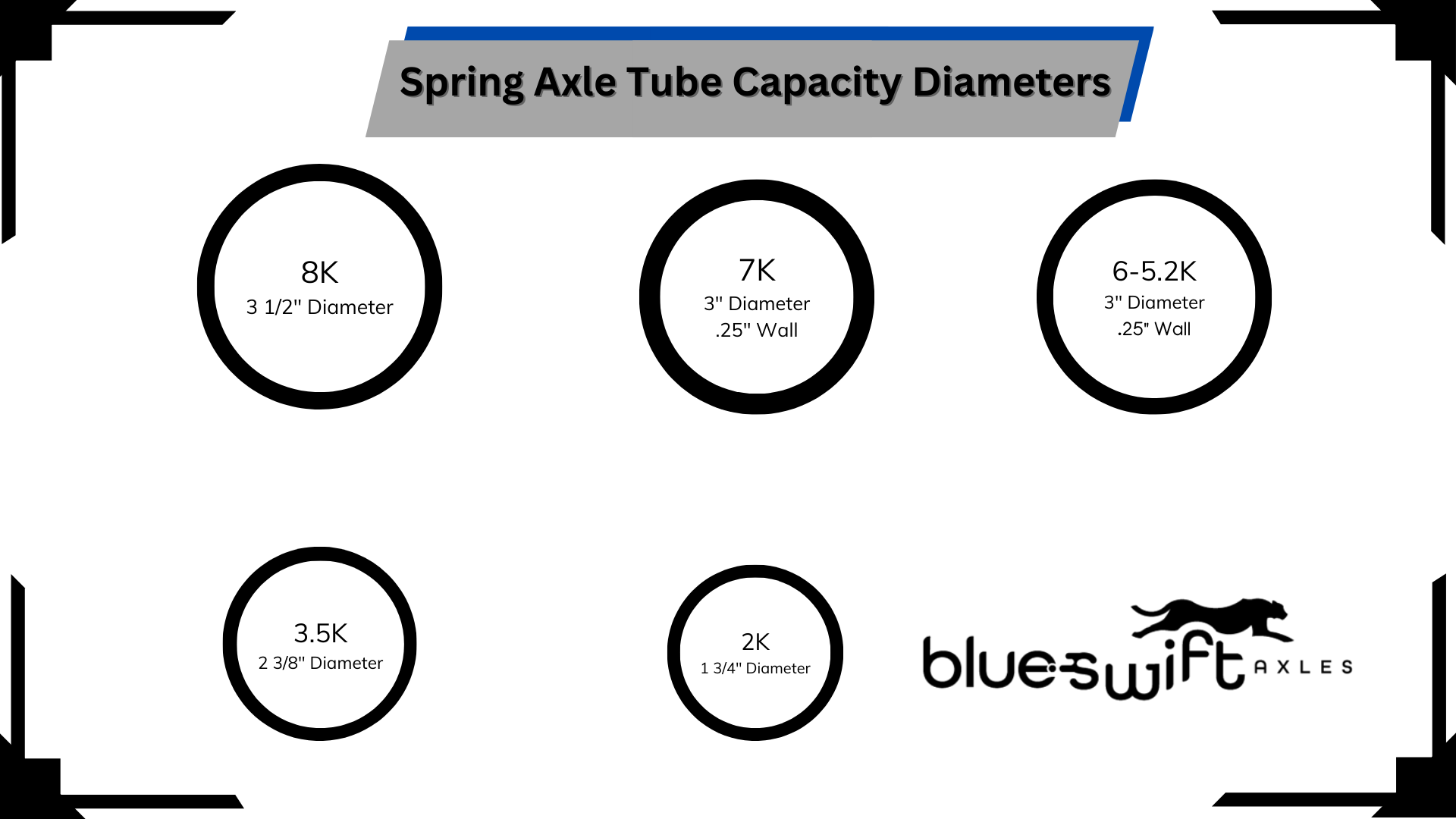

Spring Axle Tube Capacity Diameter measurement diagram

Spring Axle Tube Dimensions

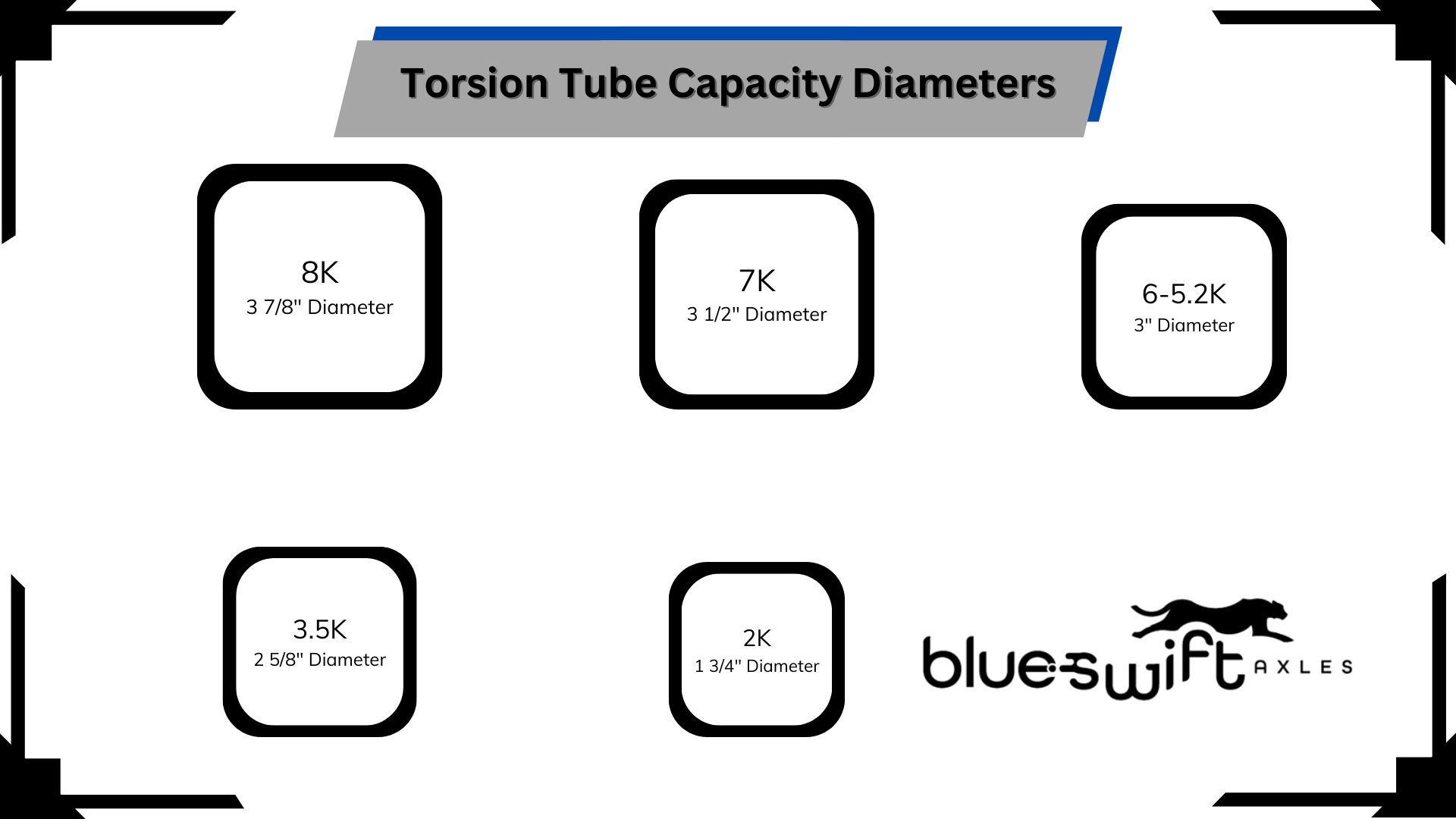

Torsion axle tube diameter measurements diagram

Spring Axle Tube Dimensions

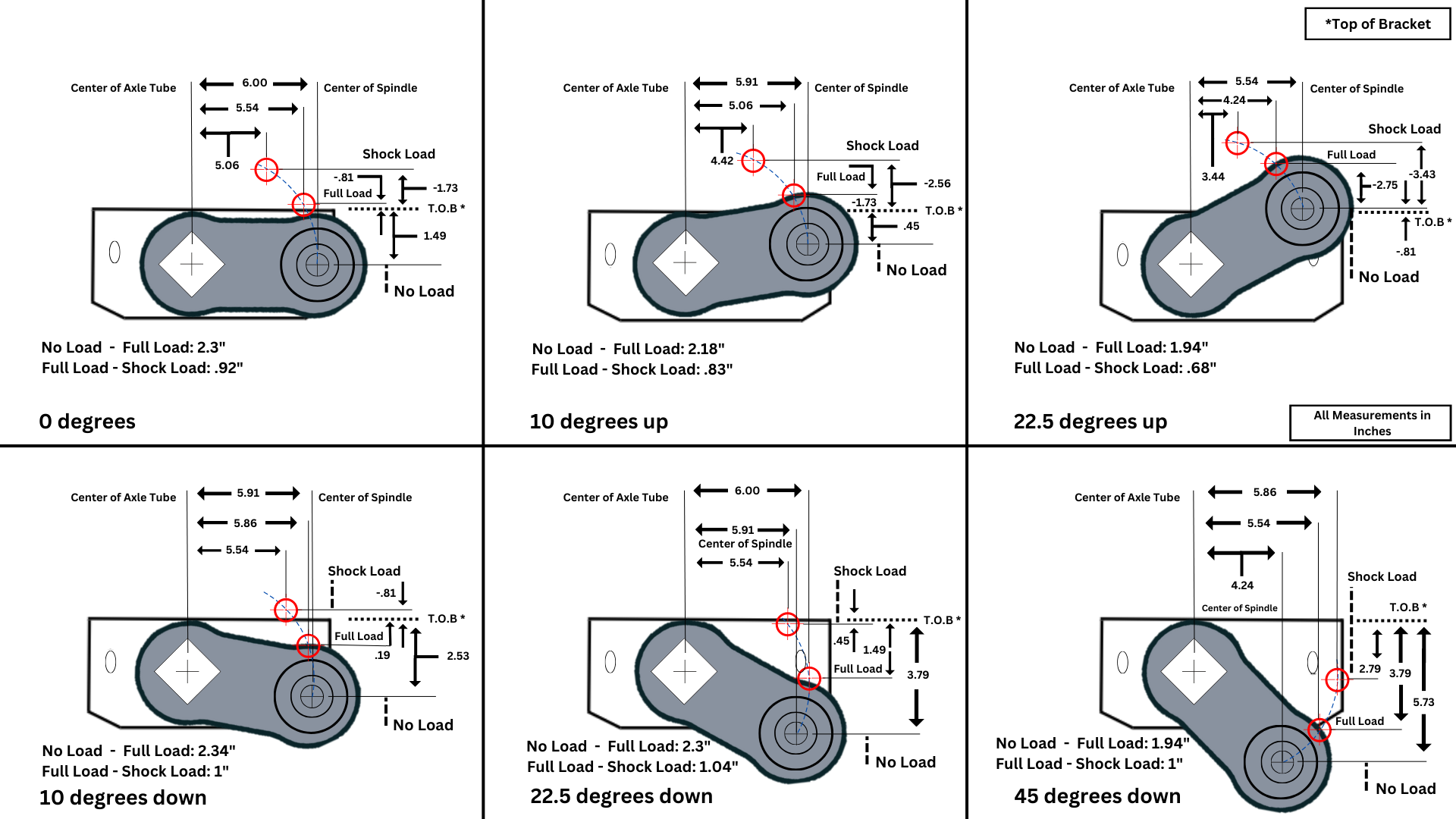

torsion trailer axle arm angle measurement diagram

Torsion Axle Trailing Arm Angles

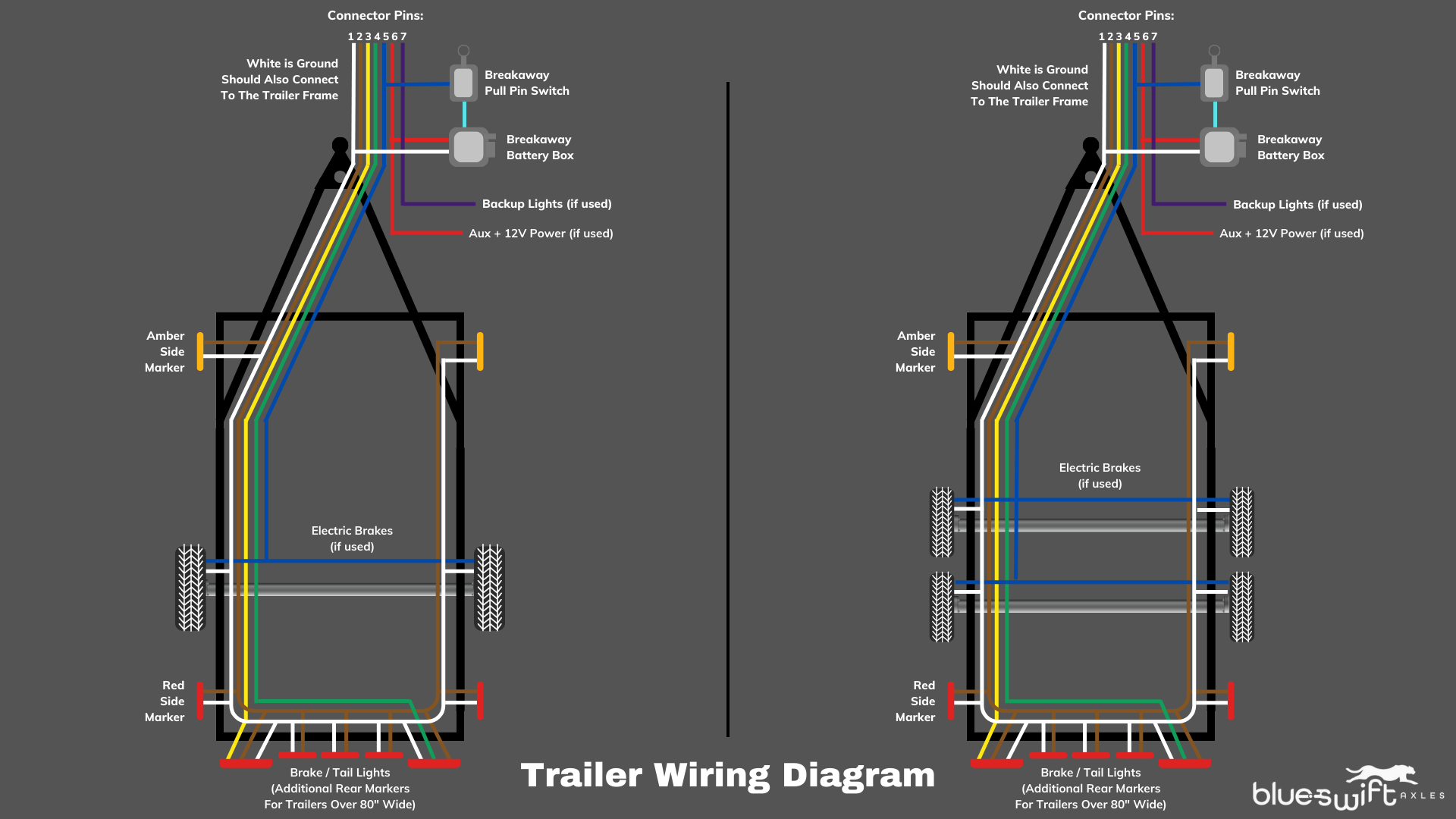

Single and Tandem Trailer Axle Wiring Diagram With Labels

7-Way Standard Plug Trailer Wiring Diagram

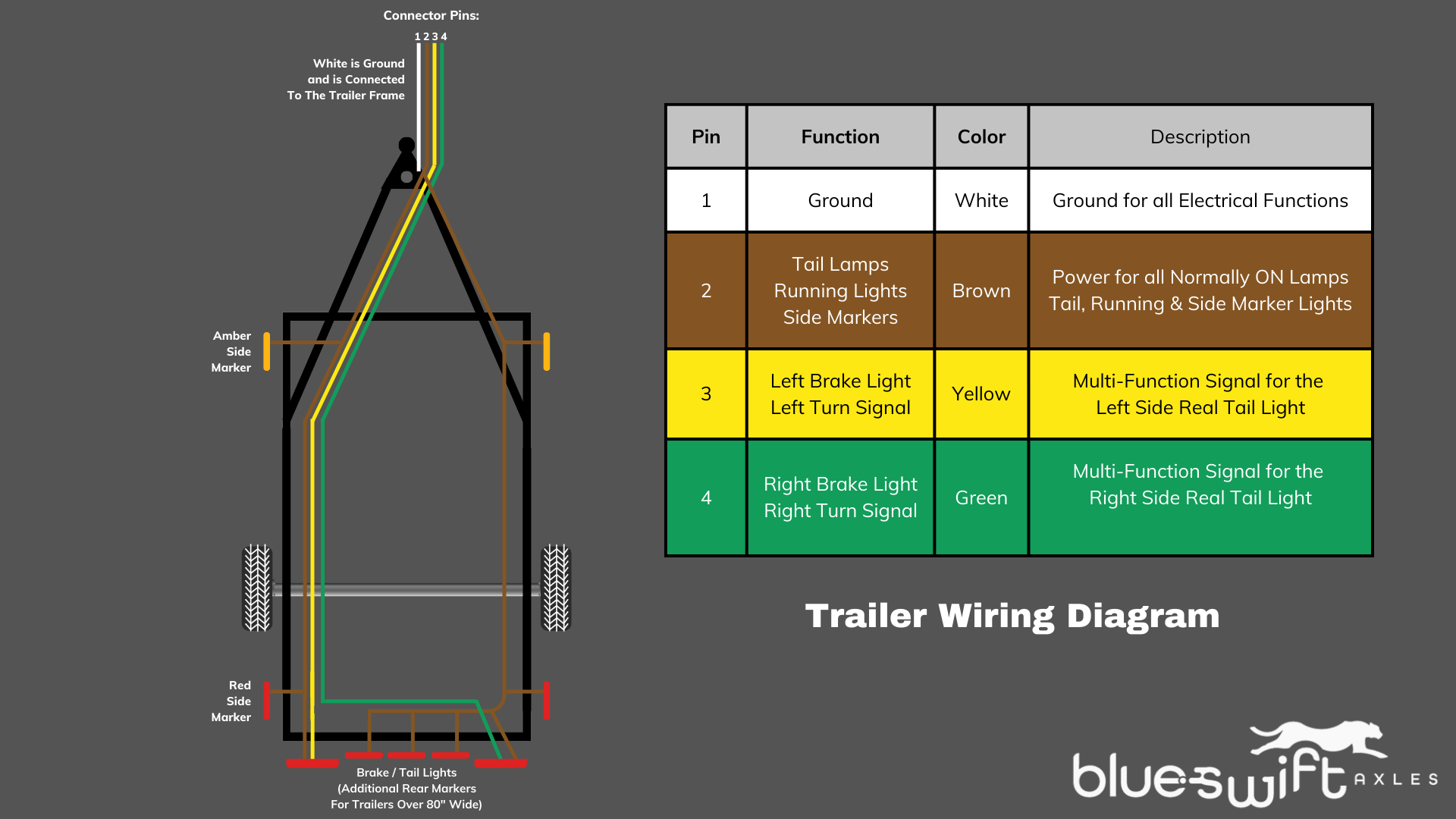

4-Way Standard trailer wiring labeled diagram

4-Way Standard Plug Trailer Wiring Diagram

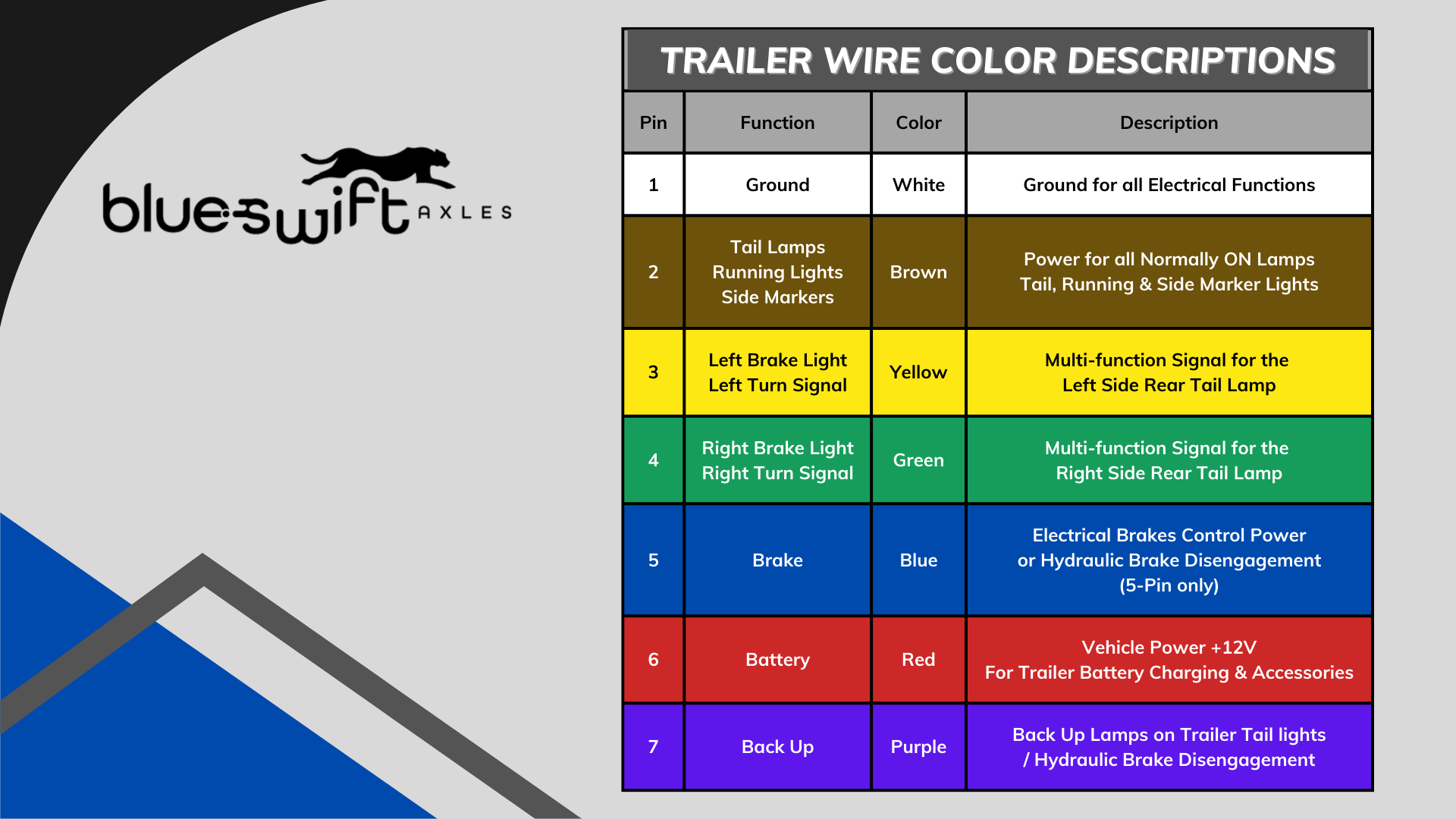

Trailer wiring color coded diagram

Color Coated Trailer Wire Template

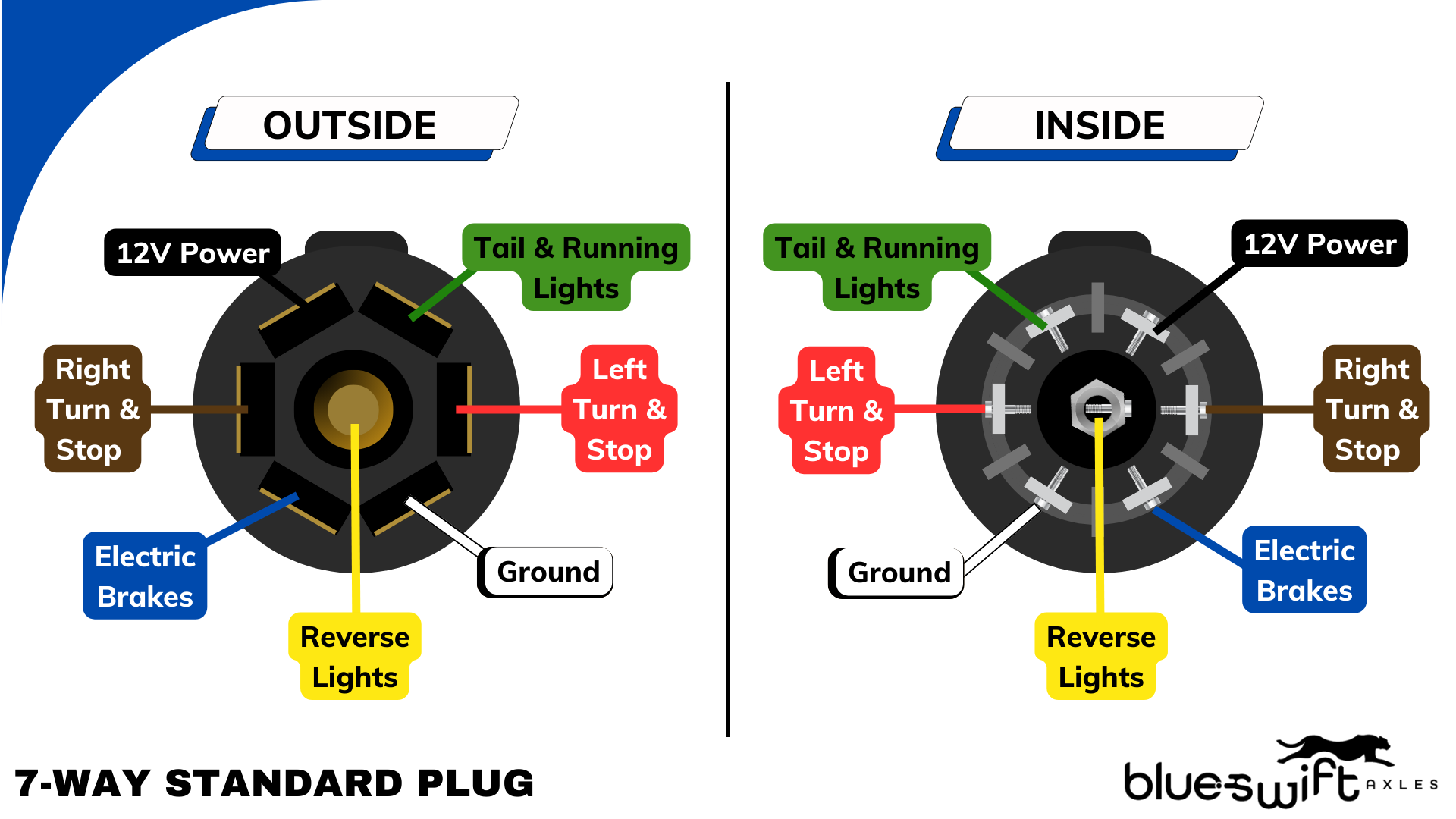

7-Way Standard Trailer Plug Labeled Diagram

7-Way Standard Plug Wiring Diagram

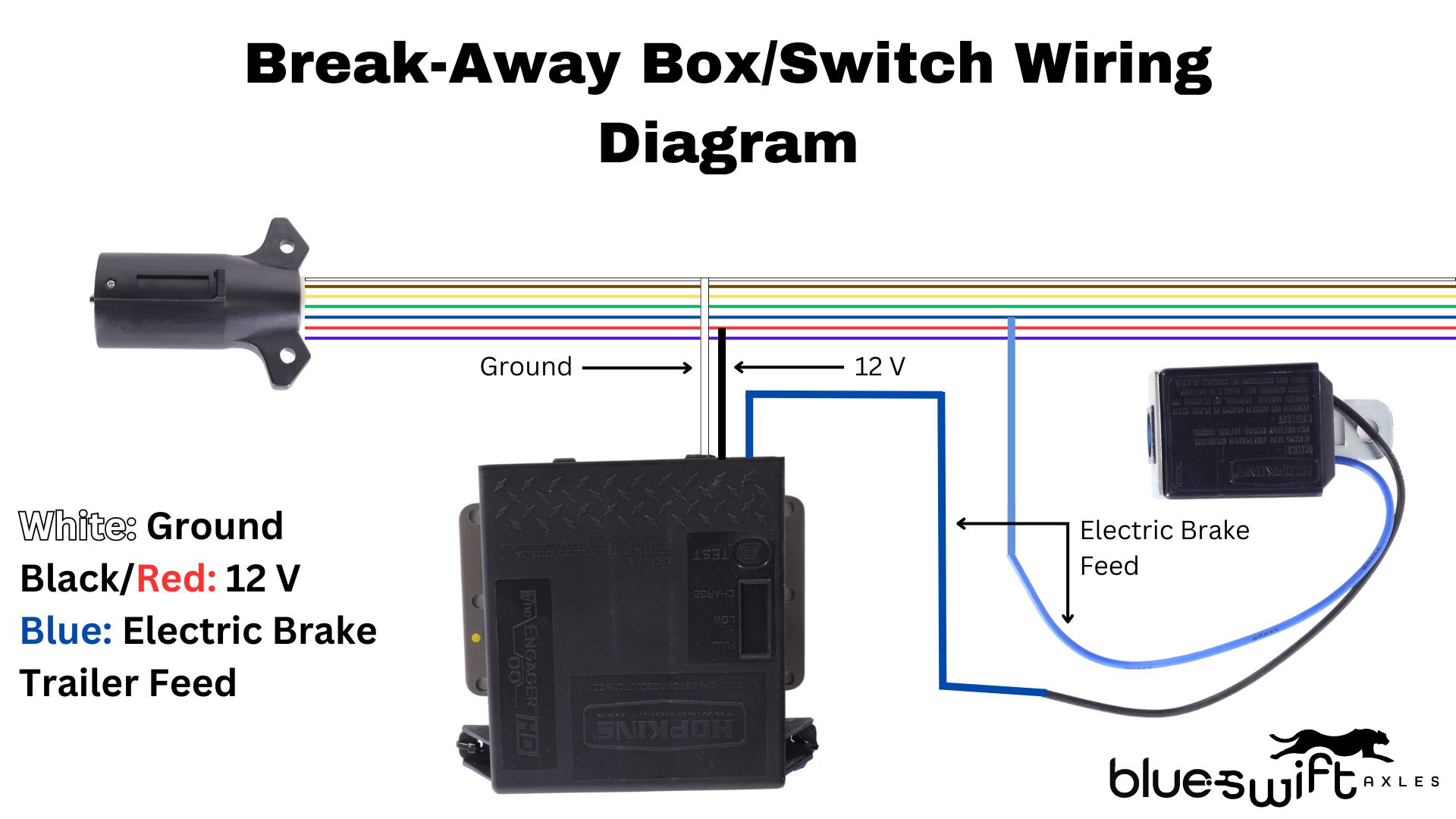

Break-Away Trailer Wiring Diagram

Break-Away Wiring Diagram

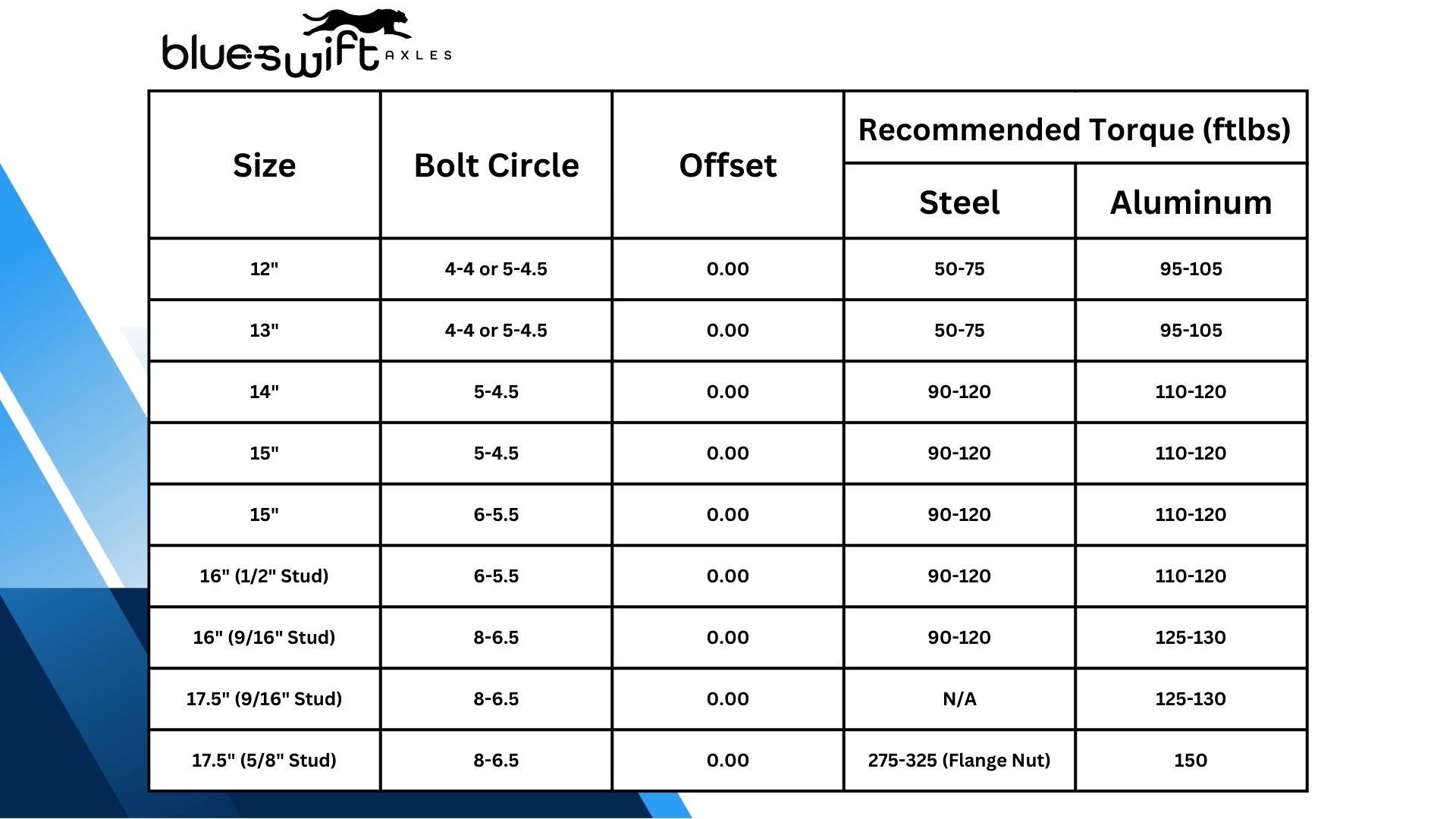

Trailer Lug Nut Torque Specifications Diagram

Lug Nut Torque Specifications Diagram

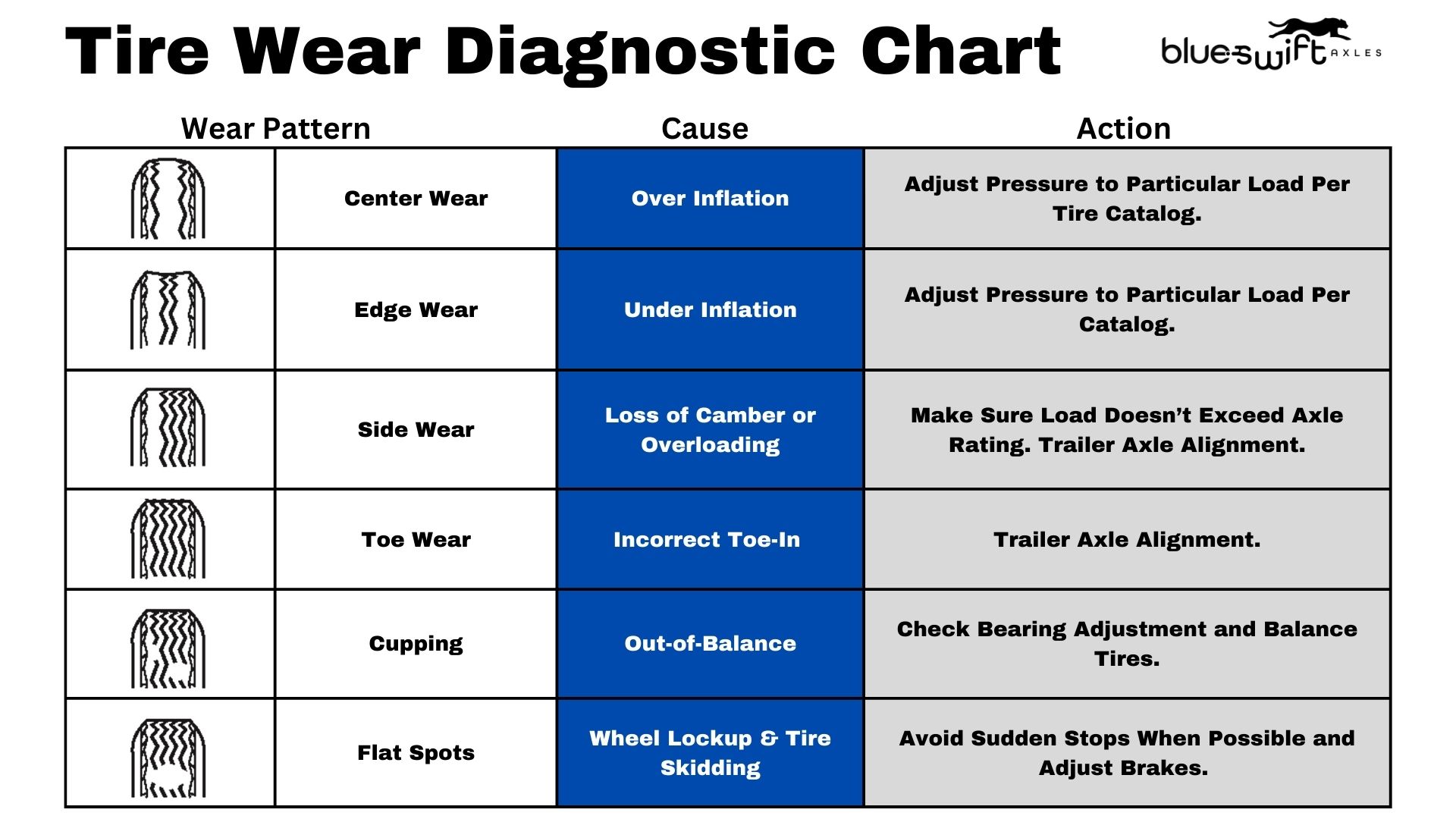

Trailer Tire Wear Diagnostic Chart

Tire Wear Diagram

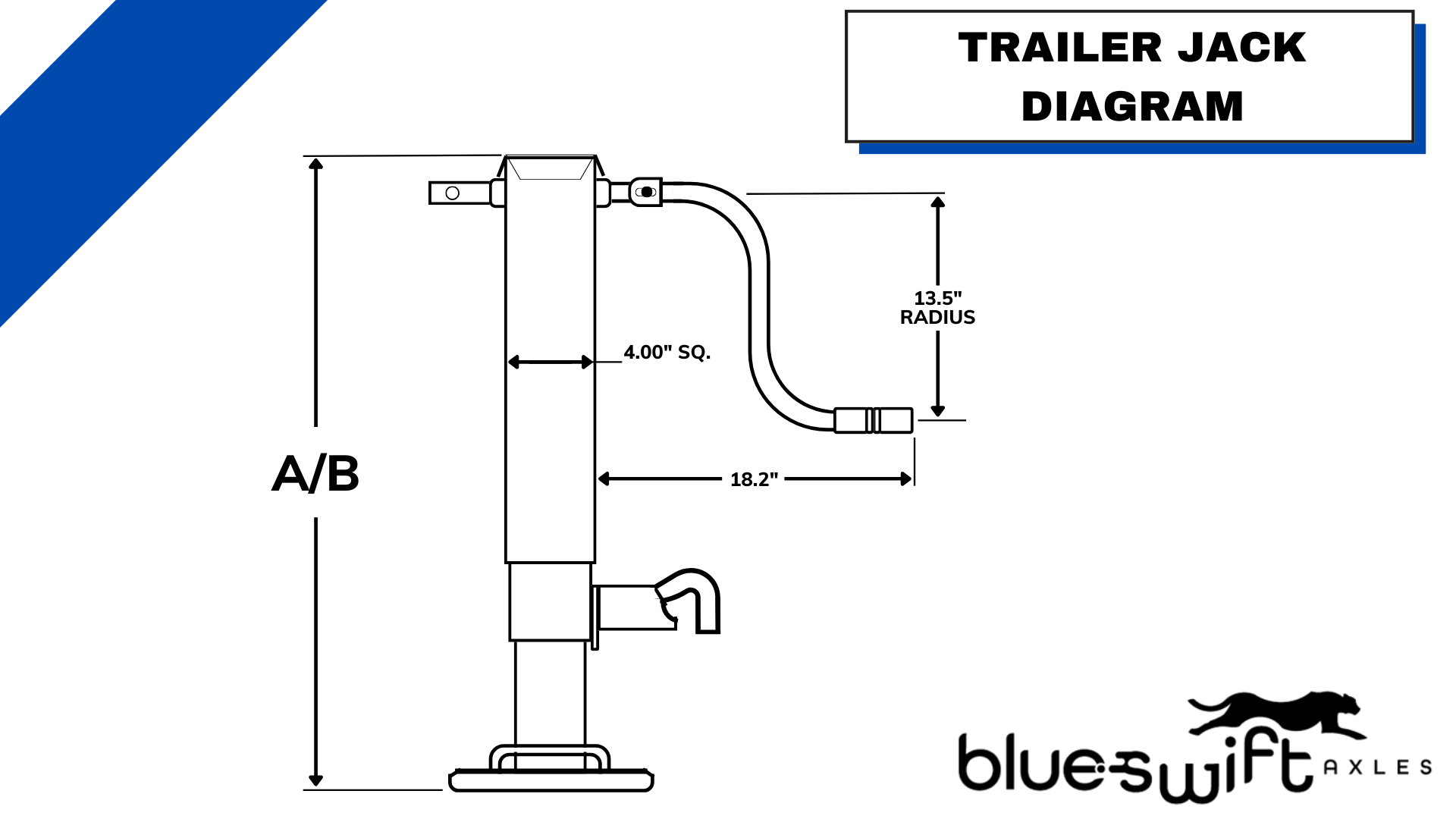

Trailer Jack labeled diagram with measurements

Trailer Jack Diagram
